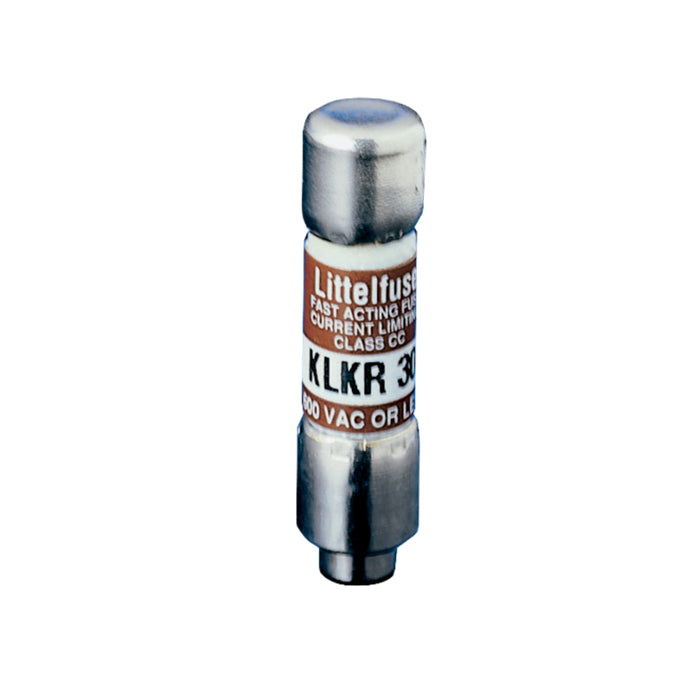

Littelfuse KLKR010S UL Class CC Fast-Acting Fuse for Mining Applications

Product Description

The Littelfuse KLKR010S is a UL Class CC fast-acting fuse designed specifically for mining applications. It has a rating of 10 Amps and operates at a maximum voltage of 600 VAC or 300 VDC. This fuse features a compact design with a body size of zero point four one inches in diameter and one point five inches in length, making it suitable for tight spaces.

• Fast-acting protection for general purpose branch circuit.
• Current limiting capabilities offering superior protection.
• Compatible with panel mounting setups.

Product Highlights

The KLKR series fuses ensure quick response to overload conditions while occupied in various electrical systems.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: KLKR010S

Technical Specifications

• Amperage Rating: 10 A
• Body Size: 0.41 in Dia x 1.5 in L
• Class: CC
• Interrupt Rating: 20/200 kA
• Material: Melamine
• Mounting Type: Panel
• Rejection/Non-Rejection: Rejection
• Series: KLKR
• Voltage Rating: 600 VAC/300 VDC
