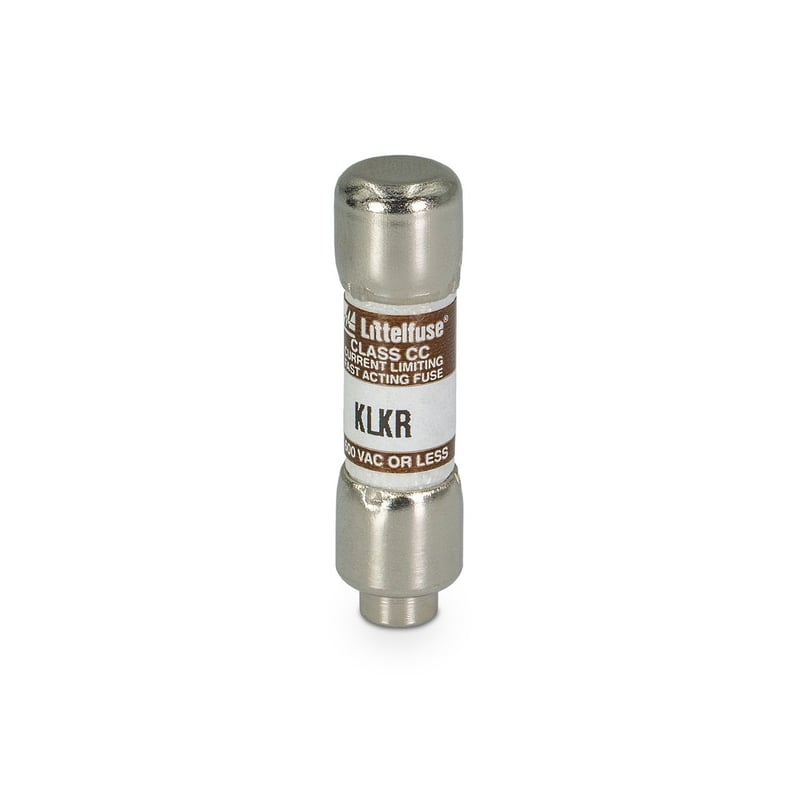

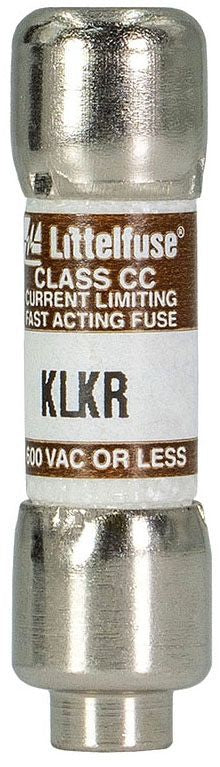

Littelfuse KLKR010 LIT Fast Acting Fuse 10 A 600 VAC/300 VDC

Product Description

The Littelfuse KLKR010 is a fast acting fuse designed for branch circuit protection. It operates at a rated voltage of 600 VAC and 300 VDC with a current rating of ten amps.

• Fast acting and highly current limiting
• Designed to protect equipment containing solid-state devices
• Compact size suitable for OEM applications

Product Highlights

This fuse provides effective protection against overloads and short circuits. Its fast acting response minimizes risks to sensitive electrical equipment.

Product Information

Standard Information

• Brand: Littelfuse
• Part Number: KLKR010

Technical Specifications

• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 10 A
• Interrupt Rating: 20/200 kA
• Body Size: 13/32 in Dia x 1-1/2 in L
• Mounting Type: Holder
• Response Time: 12 s
• Material: Melamine
• Terminal Type: Ferrule
• Class Type: CC
• Rejection Type: Rejection
