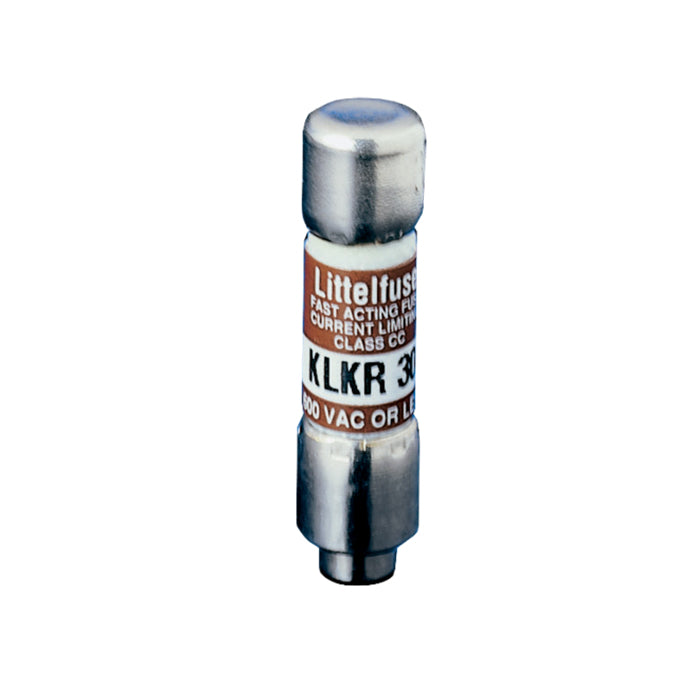

Littelfuse KLKR007S UL Class CC Fast-Acting Fuse for Mining Applications

Product Description

The Littelfuse KLKR007S is a UL Class CC fast-acting fuse designed for mining applications. With a rejection rating of seven amperes and capable of handling up to six hundred volts AC or three hundred volts DC, this fuse provides essential protection in demanding environments.

• Fast-acting design limits excessive current.
• Compact size saves space compared to traditional fuses.
• High interrupt ratings of 200 kA for AC and 20 kA for DC voltage.

Product Highlights

Ideal for general-purpose protection needs, the KLKR series is a reliable choice for OEM equipment and branch circuit applications.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Product Type: Fast-Acting Fuse

Technical Specifications

• Amperage Rating: 7 A
• Body Size: 0.41 in Diameter x 1.5 in Length
• Class: CC
• Interrupt Rating: 20/200 kA
• Material: Melamine
• Mounting Type: Panel
• Rejection Type: Rejection
• Series: KLKR
• Voltage Rating: 600 VAC/300 VDC
