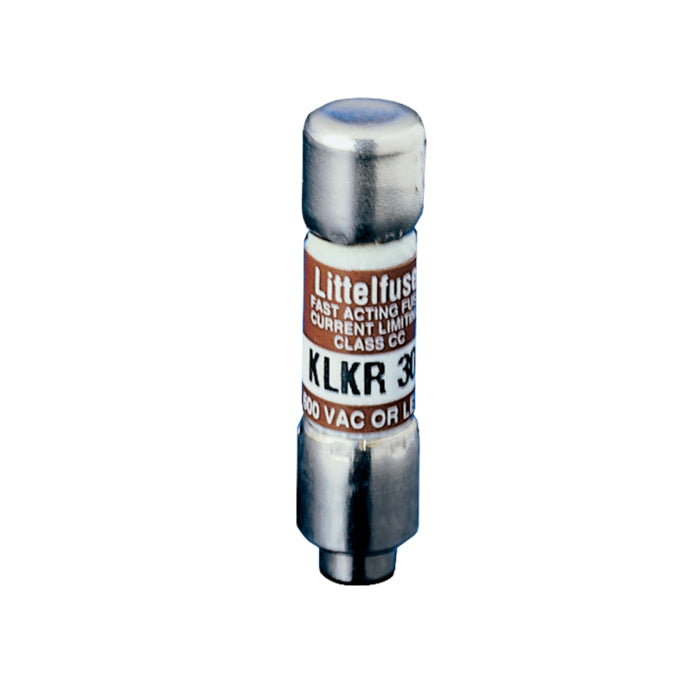

Littelfuse KLKR006S UL CLASS CC FAST-ACTING FUSE FOR MINING APPLICATIONS

Product Description

The Littelfuse KLKR006S is a UL Class CC fast-acting fuse designed for mining applications. This unit has a rating of six amperes and can handle voltages up to six hundred VAC and three hundred VDC. It features a notable interrupt rating of twenty kA at three hundred VDC and two hundred kA at six hundred VAC. The fuse's compact dimensions make it suitable for tight spaces, providing essential protection for electrical circuits.

• Fast-acting response, suitable for general-purpose branch circuit protection.
• Compact design that minimizes the space required compared to other fuse classes.
• High interrupt ratings ensure effective circuit protection in demanding environments.

Product Highlights

This fuse is ideal for use in OEM equipment and environments with strict space and performance requirements.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Family Group: Fuses/Accessories

Technical Specifications

• Amperage Rating: 6 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 0.41 in Dia x 1.5 in L
• Class: CC
• Interrupt Rating: 20/200 kA
• Material: Melamine
• Mounting Type: Panel
• Rejection/Non-Rejection: Rejection
• Series: KLKR
