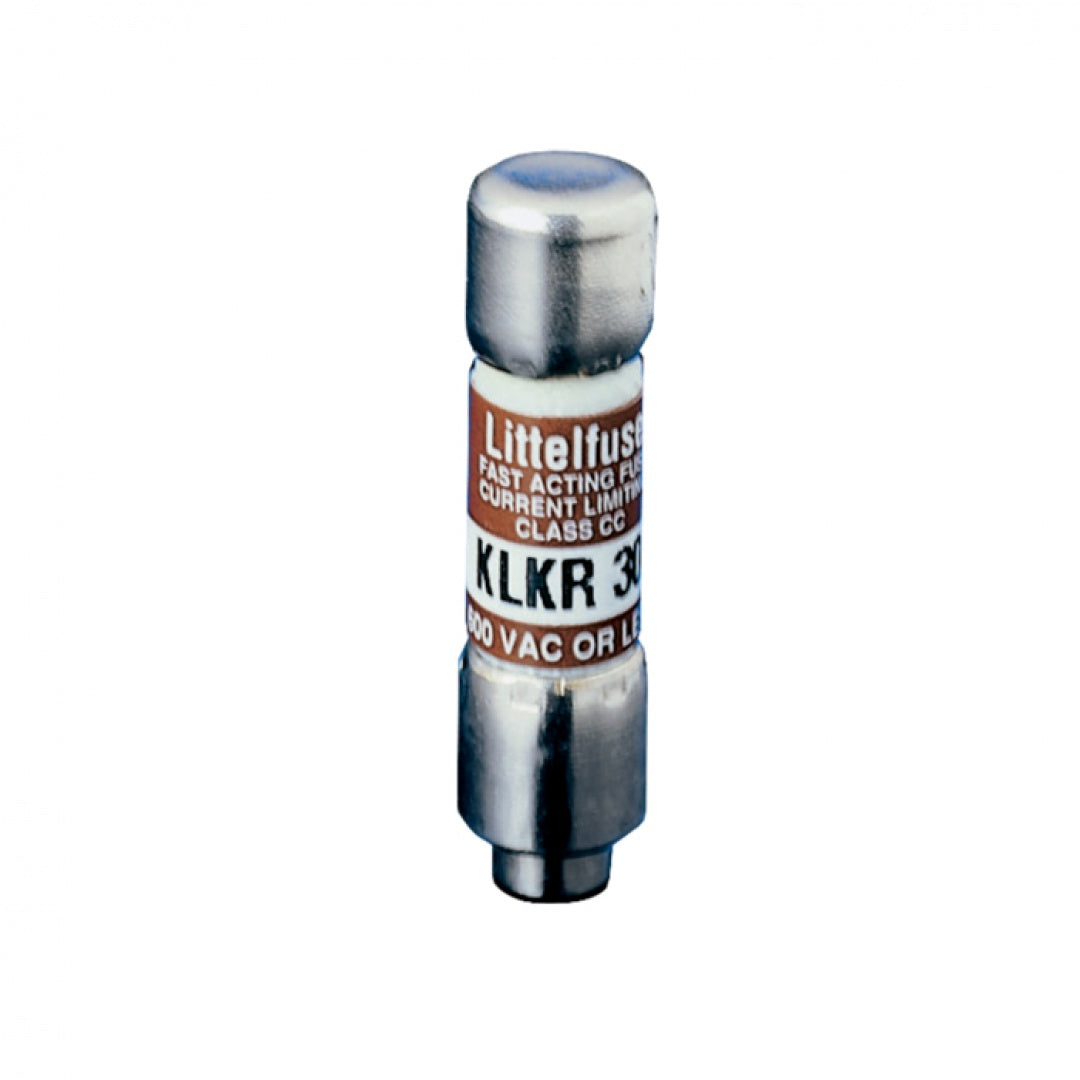

Littelfuse KLKR005 5 Amp 600V Midget Fast Acting Fuse

Product Description

The Littelfuse KLKR005 is a robust Class CC fast-acting fuse, designed to safeguard electrical circuits by interrupting excessive currents swiftly. This fuse is ideal for industrial applications where space is at a premium and protection against short circuits is crucial.

• Compact design maximizes space efficiency
• Features a high interrupt rating of 200,000 amperes, ensuring reliable operation under high fault conditions
• Fast acting response protects circuits quickly

Product Highlights

Enhanced safety with its ability to stop damaging short-circuit currents effectively and rapidly. Adheres to stringent UL 248-4 and CSA standards for assured quality and safety.

Product Information

Standard Information

• Brand: Littelfuse
• Model: KLKR005

Technical Specifications

• Voltage Capacity: 600V AC, 300V DC
• Amperage: 5 Amps
• Interrupt Rating: 200kA at 600V AC, 20kA at 300V DC
• Size: 1-1/2 inches L x 13/32 inches dia
• Compliance: UL Listed, CSA Certified, RoHS Compliant
