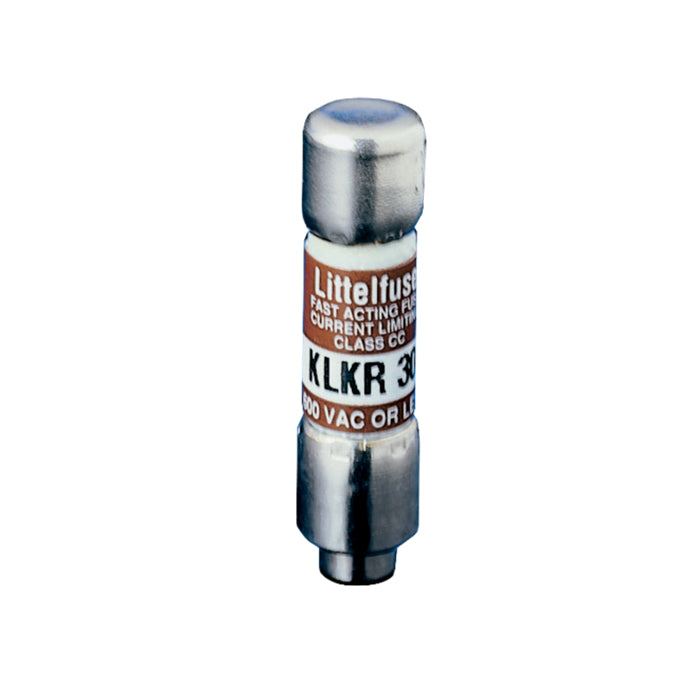

Littelfuse KLKR003S UL CLASS CC FAST-ACTING FUSE FOR MINING APPLICATIONS

Product Description

The Littelfuse KLKR003S is a UL Class CC fast-acting fuse designed for mining applications. It provides effective protection in a compact design. The fuse features a rejection type with an amperage rating of three amps and can handle voltages of six hundred VAC and three hundred VDC.

• Fast-acting for immediate overload protection
• High interrupt ratings of 200 kA at 600 VAC and 20 kA at 300 VDC
• Compact design ideal for general-purpose branch circuit protection

Product Highlights

This fast-acting fuse is ideal for use in OEM equipment and relevant applications requiring reliable protection.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: KLKR003S

Technical Specifications

• Amperage Rating: 3 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 20/200 kA
• Body Size: 0.41 in Dia x 1.5 in L
• Class: CC
• Material: Melamine
• Mounting Type: Panel
• Series: KLKR
• Rejection Type: Rejection
