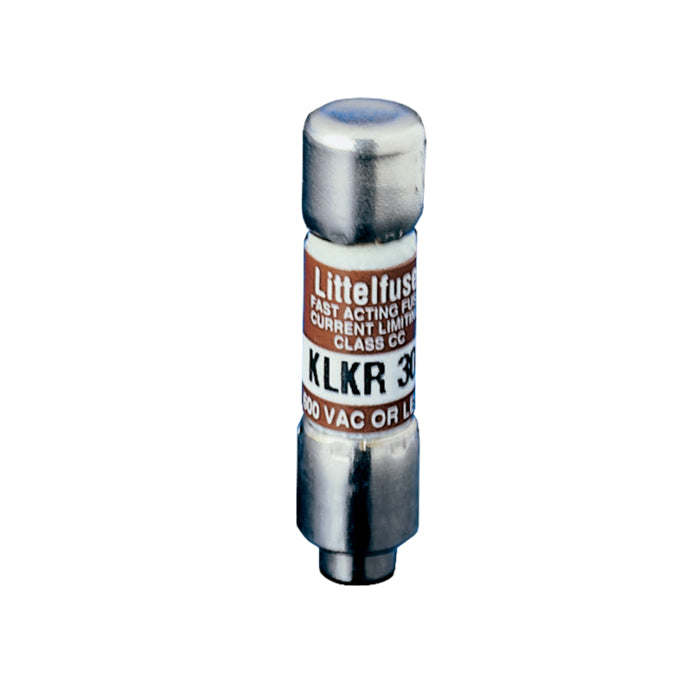

Littelfuse KLKR003 Fuse 600V Fast Acting Class CC 3Amp

Product Description

The Littelfuse KLKR003 is a Class CC fast-acting fuse designed for reliable performance in high-demand electrical settings. This fuse operates at 600VAC or 300VDC, with an interrupting rating of 200,000 amperes and fast response characteristics, making it suitable for OEM applications and complex electronics that require quick-reacting protection.

• Compact and efficient, designed specifically for space-savings in high-density panels.
• Features a rejection-style that ensures correct fuse replacement with similar ratings.
• Constructed from durable melamine with a nickel-plated bronze cap for enhanced durability and conductivity.

Product Highlights

This Littelfuse fuse model is engineered to provide superior protection against overcurrents, effectively limiting the damage from short-circuit events. It's an excellent choice for safeguarding sensitive electronic components due to its quick-acting design and high interrupting capacity.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: KLKR003

Technical Specifications

• Amperage: 3 Amps
• Voltage: 600VAC / 300VDC
• Interrupting Rating: 200kA at 600VAC, 20kA at 300VDC
• Body Material: Melamine
• Dimensions: 13/32 inch diameter x 1-1/2 inch length
• Standards: UL 248-4, CSA Certified, RoHS
