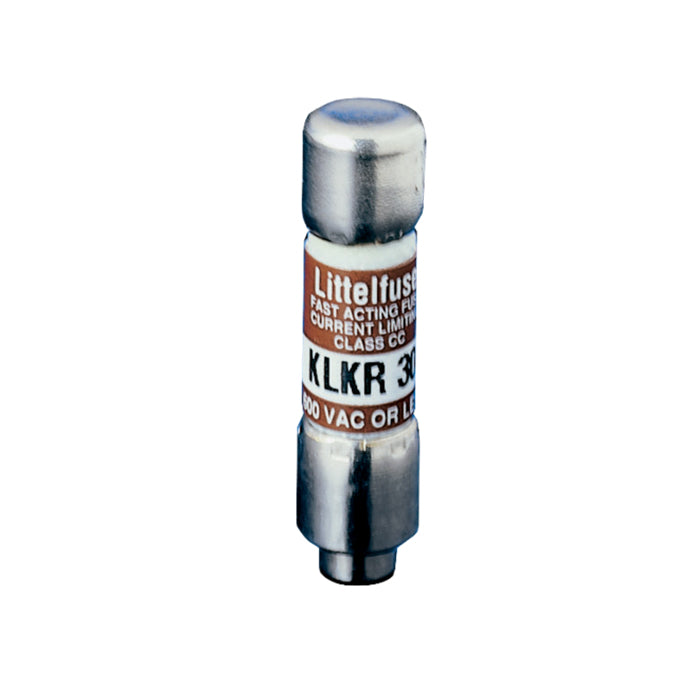

Littelfuse KLKR002S UL Class CC Fast-Acting Fuse for Mining Applications

Product Description

The Littelfuse KLKR002S is a UL Class CC fast-acting fuse designed specifically for mining applications. This fuse offers a rejection type that ensures safety by preventing incorrect fuse installation. It has an amperage rating of two amperes and is rated for voltage use up to six hundred volts alternating current (VAC) or three hundred volts direct current (VDC). The KLKR series is known for its compact design, allowing for installation in tight spaces while providing reliable protection against overcurrents.

• Fast-acting function ideal for circuit protection
• Compact size suitable for various applications
• High interrupt ratings of 200 kA at 600 VAC and 20 kA at 300 VDC

Product Highlights

This fuse provides exceptional current limiting capabilities, making it a preferred choice for OEM equipment and general-purpose applications.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Series: KLKR

Technical Specifications

• Amperage Rating: 2 A
• Body Size: 0.41 in diameter x 1.5 in length
• Class: CC
• Interrupt Rating: 20/200 kA
• Material: Melamine
• Mounting Type: Panel
• Rejection/Non-Rejection: Rejection
• Voltage Rating: 600 VAC/300 VDC
