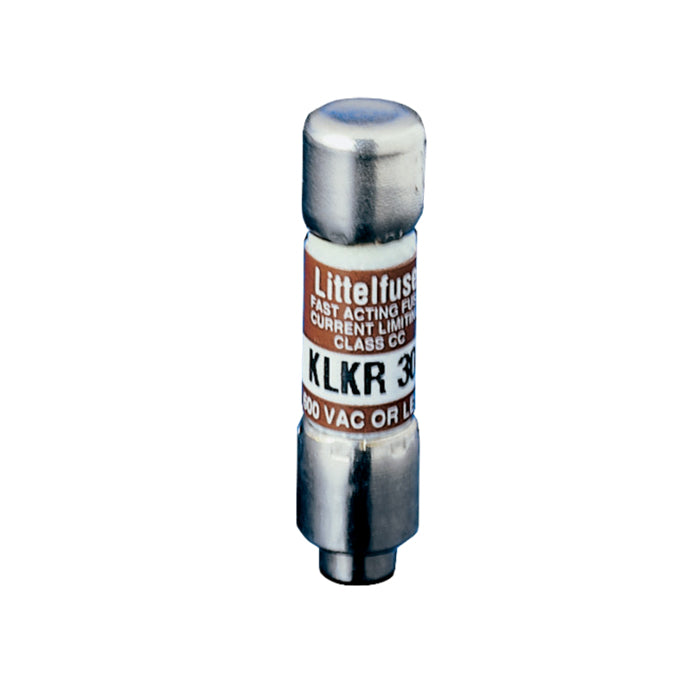

Littelfuse KLKR001S UL Class CC Fast-Acting Fuse for Mining Applications

Product Description

Littelfuse KLKR001S is a UL Class CC fast-acting fuse designed for mining applications. This fuse features a compact design suited for panel mounting. The KLKR series offers high current interruption capabilities, making it suitable for general-purpose protection.

• 1 Amp rating for reliable performance.
• Interrupt ratings of 20 kA at 300 VDC and 200 kA at 600 VAC.
• Constructed from durable melamine material.

Product Highlights

This fuse provides effective protection in a smaller footprint compared to other fuse classes. Its current-limiting design minimizes the risk of equipment damage during overloads.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Mounting Type: Panel

Technical Specifications

• Amperage Rating: 1 A
• Body Size: 0.41 inches Diameter x 1.5 inches Length
• Class: CC
• Interrupt Rating: 20/200 kA
• Material: Melamine
• Voltage Rating: 600 VAC/300 VDC
• Rejection: Rejection
• Series: KLKR
