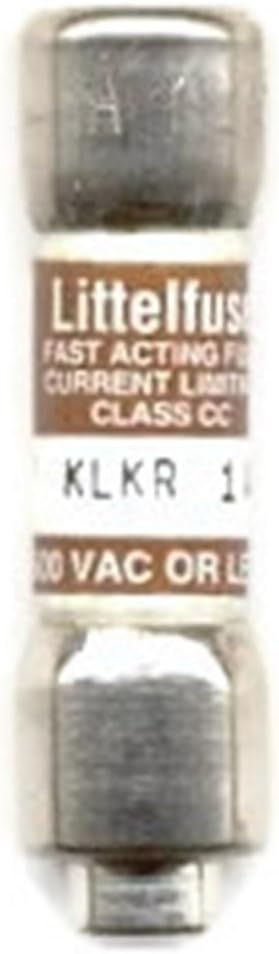

Littelfuse KLKR001 Series Fast Acting Fuse 600VAC 1 Amp

Product Description

The Littelfuse KLKR001 is a fast-acting fuse designed for general-purpose branch circuit protection. It comes with a 600V AC and 300V DC voltage rating, ensuring a high level of protection for electrical circuits.

• Fast acting for quick overload protection
• Designed for 600V circuits
• Compact size for space-saving installations

Product Highlights

This 1 Amp fuse from the KLKR series is suited for OEM equipment and control panels. Its fast-acting overload response and highly current limiting design make it ideal for protecting solid-state devices like SCRs and other sensitive electronic equipment.

Product Information

Standard Information

• Brand: Littelfuse
• Series: KLKR
• Application: General Purpose

Technical Specifications

• MPN: KLKR001
• Voltage Rating: 600VAC / 300VDC
• Amperage: 1 Amp
• Interrupt Rating: 200kA at 600VAC, 20kA at 300VDC
• Body Type: Cartridge
• Material: Melamine
• Mounting Type: Holder
• Response Time: 12 seconds
