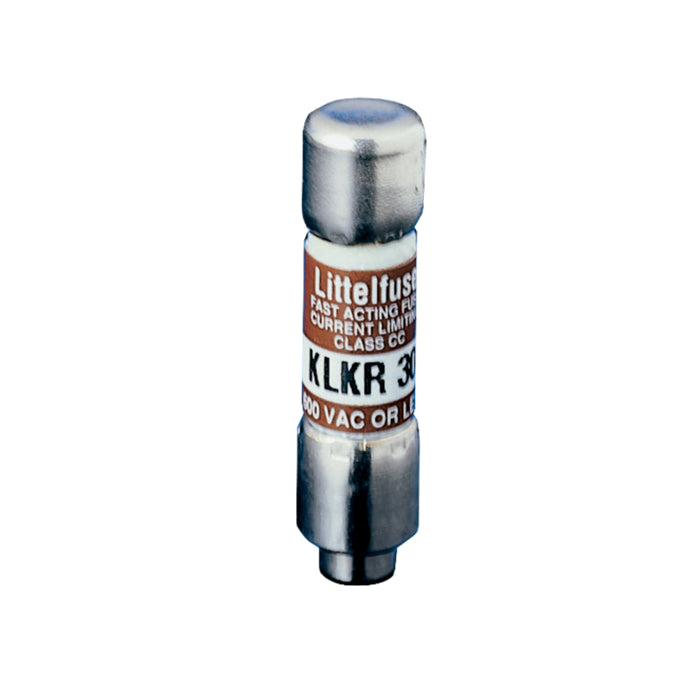

Littelfuse KLKR.500S UL Class CC Fast-Acting Fuse for Mining Applications

Product Description

The Littelfuse KLKR.500S is a fast-acting fuse designed for mining applications. This UL Class CC fuse provides robust protection against overloads and short circuits. It has a rejection feature that prevents the use of fuses with lower interrupting ratings when used with the correct fuse holders. The KLKR series is well-suited for equipment requiring fast overload protection.

• Amperage Rating: 0.5 A
• Voltage Rating: 600 VAC/300 VDC
• Body Type: Cartridge

Product Highlights

This fuse limits current during faults, reducing the risk of damage from heat and magnetic effects. Its compact design offers efficient space usage compared to other fuse types.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Part Number: KLKR.500S

Technical Specifications

• Interrupt Rating: 20/200 kA
• Response Time: 12 s
• Body Size: 13/32 in (Diameter) x 1-1/2 in (Length)
• Material: Melamine
• Mounting Type: Holder
• Type: High Speed North American Style
• Class: CC
• Indicating/Non-Indicating: Non-Indicating
