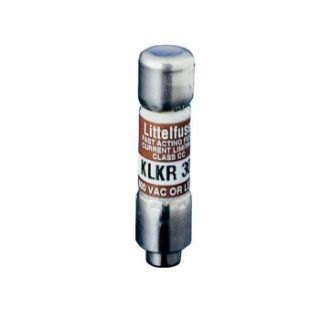

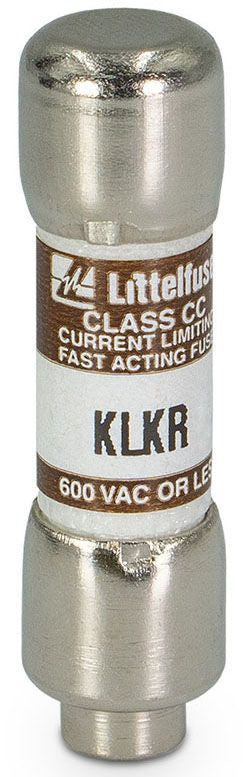

Littelfuse KLKR.300 Fuse 600V Fast Acting Class CC

Product Description

The Littelfuse KLKR.300 is a fast-acting, Class CC fuse designed for dependable protection in various electrical applications. This product operates at 0.3 amperes with a voltage capacity of six hundred volts alternating current or three hundred volts direct current. Its compact design allows for installation in tight spaces, making it suitable for OEM equipment and control panels.

• Rated for 600 VAC and 300 VDC
• Interrupt rating of 20/200 kA
• Fast acting, with a response time of 12 seconds

Product Highlights

This fuse is highly current limiting, reducing damage from short circuits. Its rejection feature prevents the use of lower-rated fuses in compatible holders. This product is UL listed and CSA certified, meeting standards for safety and reliability.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 0.3 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Type: Cartridge
• Body Size: 13/32 in Dia x 1-1/2 in L
• Material: Melamine
• Mounting Type: Holder
• Response Time: 12 seconds
• Interrupt Rating: 20/200 kA
• Country of Origin: Mexico
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
• Series: KLKR
