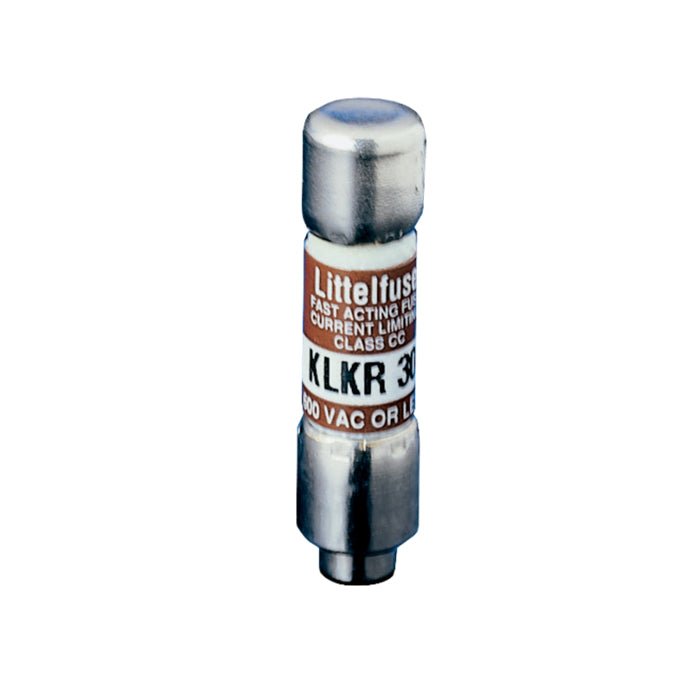

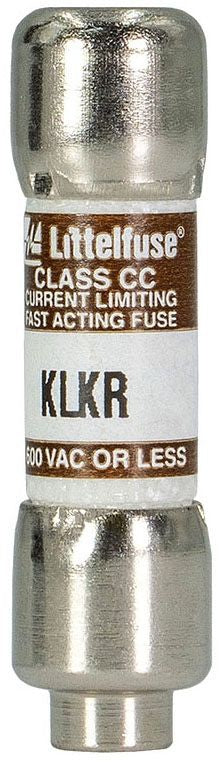

Littelfuse KLKR.250 Midget Fuse 1/4 AMP 600VAC 300VDC

Product Description

The Littelfuse KLKR.250 is a fast-acting midget fuse designed for general purpose branch circuit protection. This fuse is rated at one-fourth ampere with a voltage capacity of six hundred volts alternating current and three hundred volts direct current. The KLKR series is particularly suited for protecting equipment that contains solid-state devices or other electronic components that require quick response times during overload conditions.

• Fast-acting fuse reduces downtime by providing immediate protection.
• Compact size allows for easy installation in tight spaces.
• Interrupt rating supports applications requiring high current limiting capability.

Product Highlights

This midget fuse is ideal for OEM equipment and control panels, offering superior protection in minimal space.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Type: Fast Acting

Technical Specifications

• Amperage Rating: 0.25 A
• Voltage Rating: 600 VAC / 300 VDC
• Diameter: 0.41 in
• Length: 1.5 in
• Interrupting Rating: 200 kA (AC), 20 kA (DC)
• Terminal Type: Ferrule
• Standards/Approvals: UL 248-4, CSA
• Material: Melamine
