Littelfuse KLKD015 midget fast acting fuse 15 A 600 V (5AG 13/32 x 1-1/2 in)

LITTELFUSE
Brand: LITTELFUSE
SKU: KLKD015
Availability: In Stock

Ships same day if ordered by 12 pm
$54.13
$54.13
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

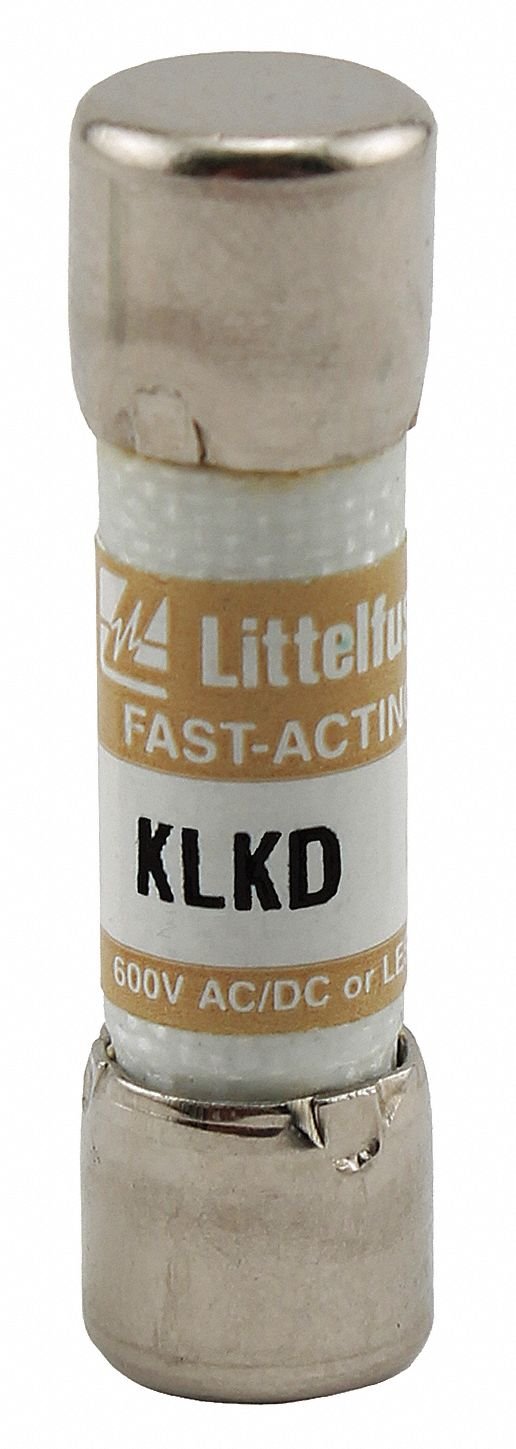

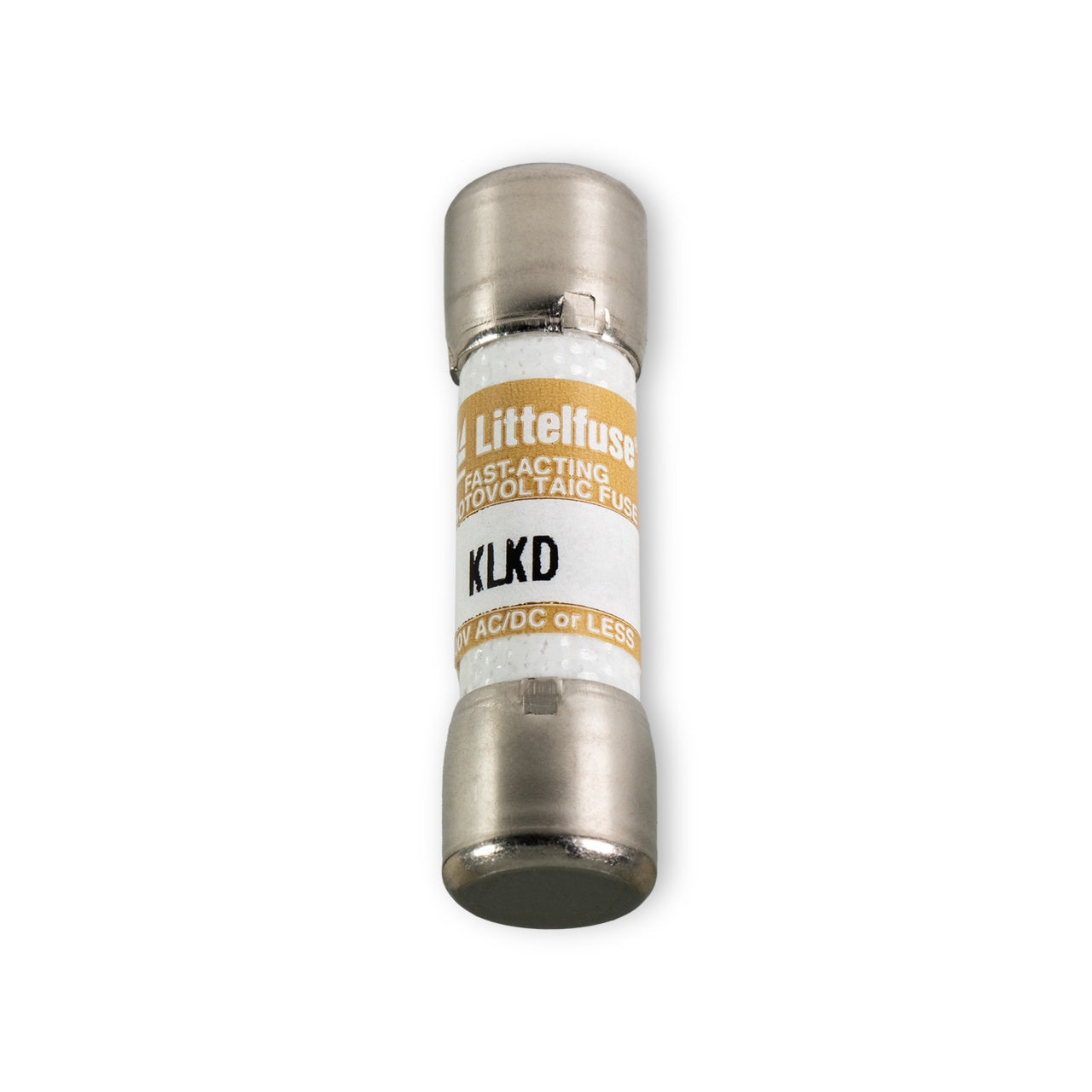

The Littelfuse KLKD015 is a fast-acting midget (5AG) cartridge fuse rated 15 A at 600 VAC/VDC with a high interrupting capacity. It features a single-element design, melamine cylindrical body (13/32 in diameter x 1-1/2 in length), ferrule terminals and nickel-plated copper alloy end caps, and is suitable for supplementary protection in control circuits, PV applications, solenoids, small motors and power supplies.

  • Rated 15 A, 600 VAC/VDC with a 100 kA interrupting rating (100,000 AIC AC; 50,000 AIC DC listed by product sources)
  • Fast-acting, single-element midget (5AG) cartridge with melamine body and ferrule terminals; clip mount compatible
  • Nickel-plated copper alloy end caps, high-speed cartridge lead; meets UL and CSA standards and designed to photovoltaic specifications

Product Highlights

Midget 5AG fast-acting fuse, 15 A/600 V, high interrupting capacity, melamine body, clip mountable

Product Information

Standard Information

  • Brand: LITTELFUSE
  • Manufacturer Part Number: KLKD015
  • Country of Origin: Mexico
Technical Specifications
Brand
Littelfuse
MPN
KLKD015
Series
KLKD
Type
Fast Acting, Current Limiting
Fuse Type
Midget / Cartridge (5AG)
Current Rating
15 A
Voltage Rating
600 VAC / 600 VDC
Interrupting Rating
100 kA (100,000 AIC AC); 50 kA (50,000 AIC DC) listed by sources
Body Material
Melamine
Body Dimensions
13/32 in diameter x 1-1/2 in length (approx. 10 x 38 mm)
End Caps Material
Nickel-plated copper alloy
Element
Single
Terminal Type
Ferrule
Mounting Type
Clip / Fuse block / Holder compatible
Designed To / Standards
UL Listed, CSA Certified; designed to UL and IEC photovoltaic specifications; RoHS compliant
Application
Supplementary protection for control circuits, photovoltaic combiner boxes, solenoids, small motors, transformers, power supplies, street lighting, computers
Country of Origin
Mexico
UPC
079458102086
GTIN / EAN
0079458102086
