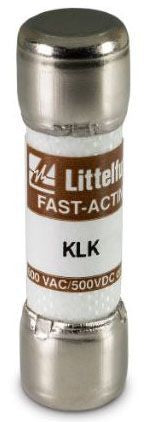

Littelfuse KLK020 600V Midget Fuse 20A Fast Acting

Product Description

The Littelfuse KLK020 is a 600V midget fuse designed for fast-acting performance in protecting electrical circuits. This fuse is engineered to interrupt high currents up to 100kA, making it ideal for an array of industrial applications including street lighting, control circuits, and HID lighting systems.

• High-interrupting capacity up to 100kA at 600VAC and 50kA at 500VDC ensures optimal protection.
• Fast response time aids in quick circuit interruption, minimizing potential damage.
• Suitable for use in environments where space is at a premium, thanks to its small, cylindrical design.

Product Highlights

Designed to offer reliable protection in industrial settings, the KLK020 fuse supports applications where typical inrush currents are not a concern. Its robust melamine casing and nickel-plated copper alloy end caps ensure durability and efficient performance.

Product Specifications

Brand: Littelfuse

MPN: KLK020

Amperage: 20A

Voltage Rating: 600VAC/500VDC

Interrupting Rating: 100kA at 600VAC, 50kA at 500VDC

Body Size: 13/32 in diameter x 1.5 in length

Mounting Type: Clip

Terminal Type: Ferrule

Standards: RoHS Compliant, UL Listed, CSA Certified
