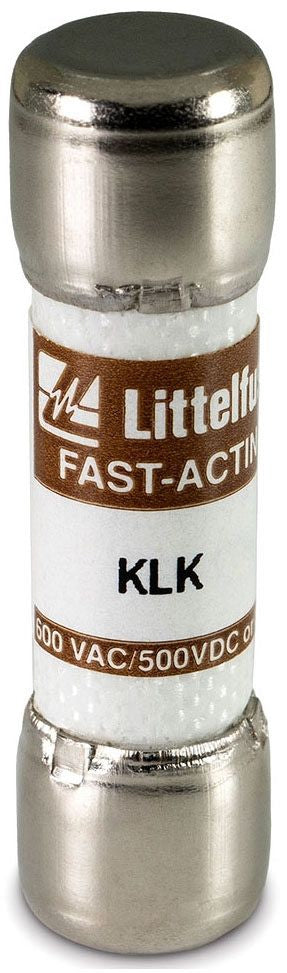

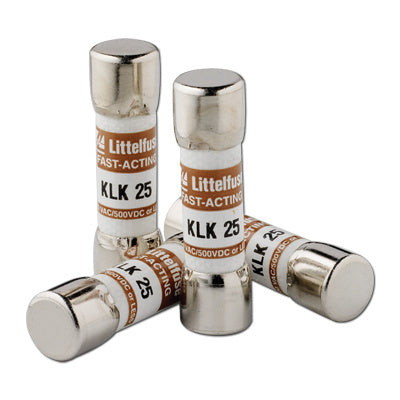

Littelfuse KLK015 KLK Fast Acting Supplemental Midget Fuse 15 A 600 VAC/500 VDC

Product Description

Littelfuse KLK015 is a fast-acting supplemental midget fuse designed for reliable circuit protection. This fuse offers a voltage rating of six hundred volts alternating current and five hundred volts direct current, with an amperage rating of fifteen amps. With a maximum interrupting capacity of one hundred kA, it achieves quick fault response in critical applications.

• Fast-acting response for quick interruption of excessive current.
• Suitable for various applications including motor protection and electronic equipment.
• Compact cylindrical design for easy installation.

Product Highlights

This midget fuse is ideal for controlling circuits in industrial and commercial environments, helping prevent damage due to overcurrent.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Brand: Littelfuse

Technical Specifications

• MPN: KLK015
• Voltage Rating: 600 VAC / 500 VDC
• Amperage Rating: 15 A
• Interrupt Rating: 100 kA
• Body Type: Cylindrical
• Body Dimensions: 13/32 in Diameter x 1-1/2 in Length
• Material: Melamine
• Response Time: 12 seconds
• Terminal Type: Ferrule
• Application: Control circuits, street lighting, small motors, and other electronic devices.
