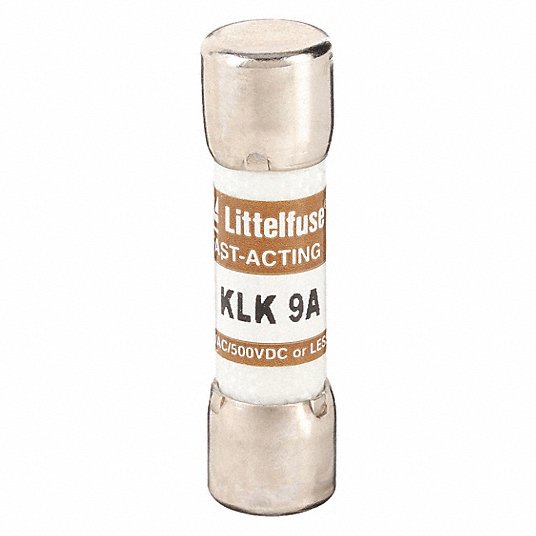

Littelfuse KLK009 Fuse: KLK Series, Midget, Fast-Acting, 9 A, 600 V AC, 500 V DC, 13/32 in x 1 1/2 in

Product Description

The Littelfuse KLK009 is a fast-acting cylindrical fuse from the KLK series, designed for sensitive current protection. This midget fuse responds rapidly to current changes, safeguarding current-sensitive equipment. It features conductive metal caps for easy installation and removal from clip-style holders. Rated at 9 A, it supports 600 V AC and 500 V DC.

• Fast-Acting
• Cylindrical fuses
• Sensitive current protection

Product Highlights

The Littelfuse KLK009 is a fast-acting midget fuse that provides sensitive and rapid current protection for equipment.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer Part Number: KLK009
• Country of Origin: Mexico

Technical Specifications

• Brand: LITTELFUSE
• Series: KLK
• Manufacturer Part Number: KLK009
• AC Voltage Rating: 600 V AC
• Body Material: Melamine
• Compatible Fuse Block Series: L600M
• Current Rating: 9 A
• DC Voltage Rating: 500 V DC
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 100 kA
• Interrupt Rating - DC: 50 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Fast-Acting
• Standards: CE; CSA Certified; QPL; RoHS; UL Listed
• Visual Indication: Non-Indicating
