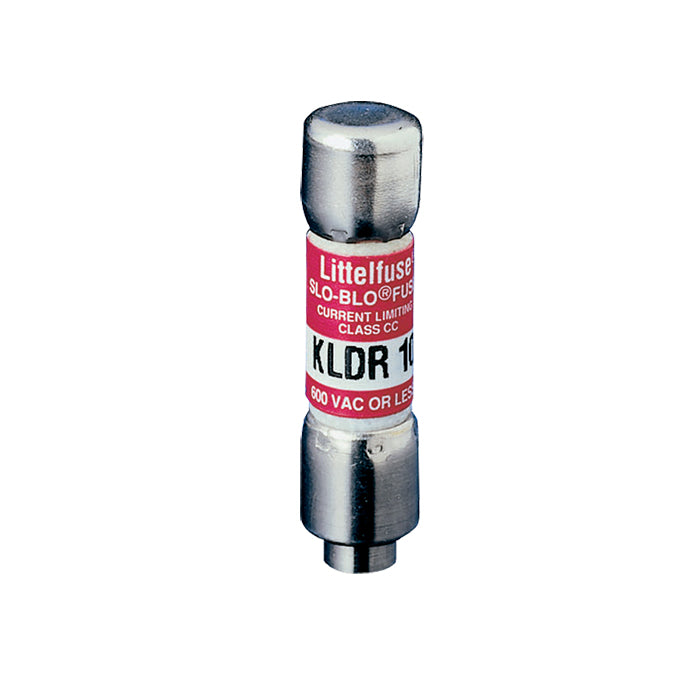

Littelfuse KLDR04.5TXP Fuse 600V T/D Class CC 4.5A Rohs

Product Description

The Littelfuse KLDR04.5TXP is a time-delay fuse designed for transformer protection. This fuse is classified as CC and allows for effective current limiting, making it ideal for safeguarding control transformers and similar inductive devices. With a rating of 4.5 amperes, it operates at 600 volts AC and 300 volts DC, ensuring reliability in electrical systems.

• Time-delay feature for managing high inrush currents.
• Rejection design prevents incorrect fuse usage.
• UL Listed under standard 248-4 for safety assurance.

Product Highlights

This fuse is suitable for transformer applications and is engineered to mitigate damage from excessive current.

Product Information

Standard Information

• Catalog Number: KLDR04.5TXP
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 4.5 A
• Body Size: 13/32 in Dia x 1-1/2 in L
• Interrupt Rating: 20/200 kA
• Voltage Rating: 600 VAC/300 VDC
• Material: Melamine
• Type: Current Limiting
• Response Time: 12 s
• Country of Origin: Mexico
