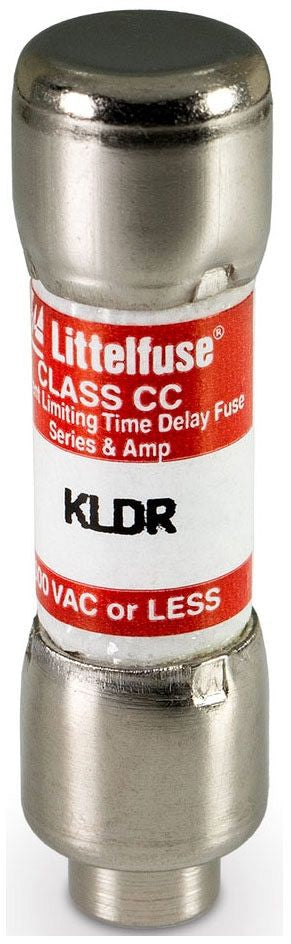

Littelfuse KLDR030.TXP LFS 600V T/D CLASS CC

Product Description

The Littelfuse KLDR030.TXP is a time-delay fuse designed to protect control transformers, solenoids, and similar inductive components during high magnetizing currents. This fuse offers essential protection for motor branch circuits featuring IEC or NEMA rated motor controllers or contactors. It effectively reduces the risk of overload in electrical systems.

• 30 amp rating for reliable overload protection
• 600 VAC and 300 VDC voltage rating for versatile applications
• Time-delay feature supports high inrush currents during operation

Product Highlights

The Littelfuse KLDR030.TXP is perfect for transformer protection, effective against high inrush currents.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: KLDR030.TXP

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupting Rating: 20 kA (DC), 200 kA (AC)
• Body Type: Cartridge
• Body Size: 13/32 in diameter x 1-1/2 in long
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Ferrule
• Response Time: 12 s
• Sub Brand: POWR-GARD KLDR Series
• Standards: UL 248-4, CSA LR29862
• Application: Transformer Protection
