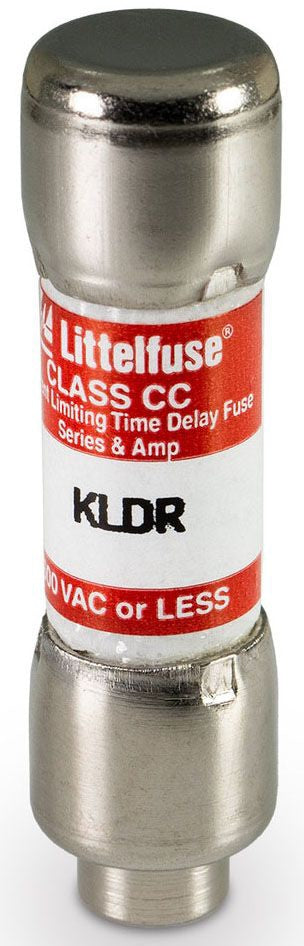

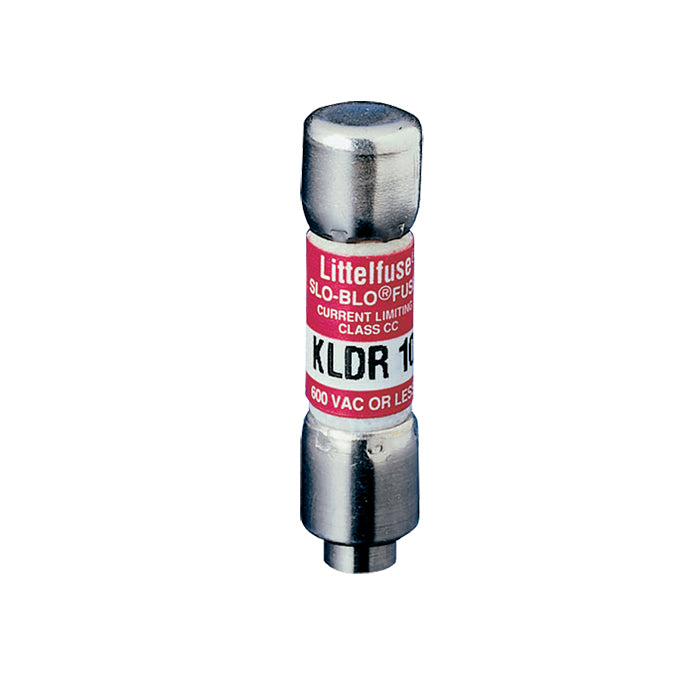

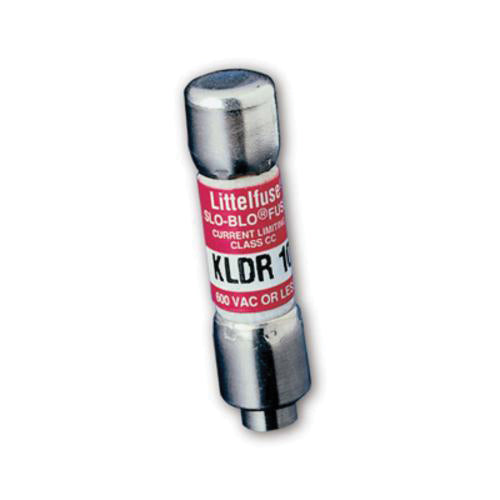

Littelfuse KLDR03.5TXP Time Delay Fuse 3.5 A 600 VAC/300 VDC Class CC

Product Description

The Littelfuse KLDR03.5TXP is a current limiting time delay fuse designed for transformer protection applications. This fuse has an amperage rating of three point five Amps and a voltage rating of six hundred VAC and three hundred VDC. Its interrupt rating is twenty kA at three hundred VDC and two hundred kA at six hundred VAC.

• Designed to protect control transformers and similar inductive components.
• Time-delay feature for high magnetizing currents.
• Rejection feature for safety, preventing the use of lower rated fuses.

Product Highlights

This fuse helps protect motor branch circuits by providing excellent interrupt ratings and ensuring reliable performance during overload conditions.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: KLDR03.5TXP

Technical Specifications

• Amperage Rating: 3.5 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 20/200 kA
• Response Time: 12 s
• Body Size: 13/32 in Diameter x 1-1/2 in Length
• Body Type: Cartridge
• Material: Melamine
• Mounting Type: Holder
• Class: CC
• Terminal Type: Ferrule
• Indicating: Non-Indicating
• Rejection: Rejection
• Standards: UL 248-4|E81895|CSA LR29862
