Littelfuse KLDR012 600V Midget Fuse 10 Pack FNQ-R ATQR

Product Description

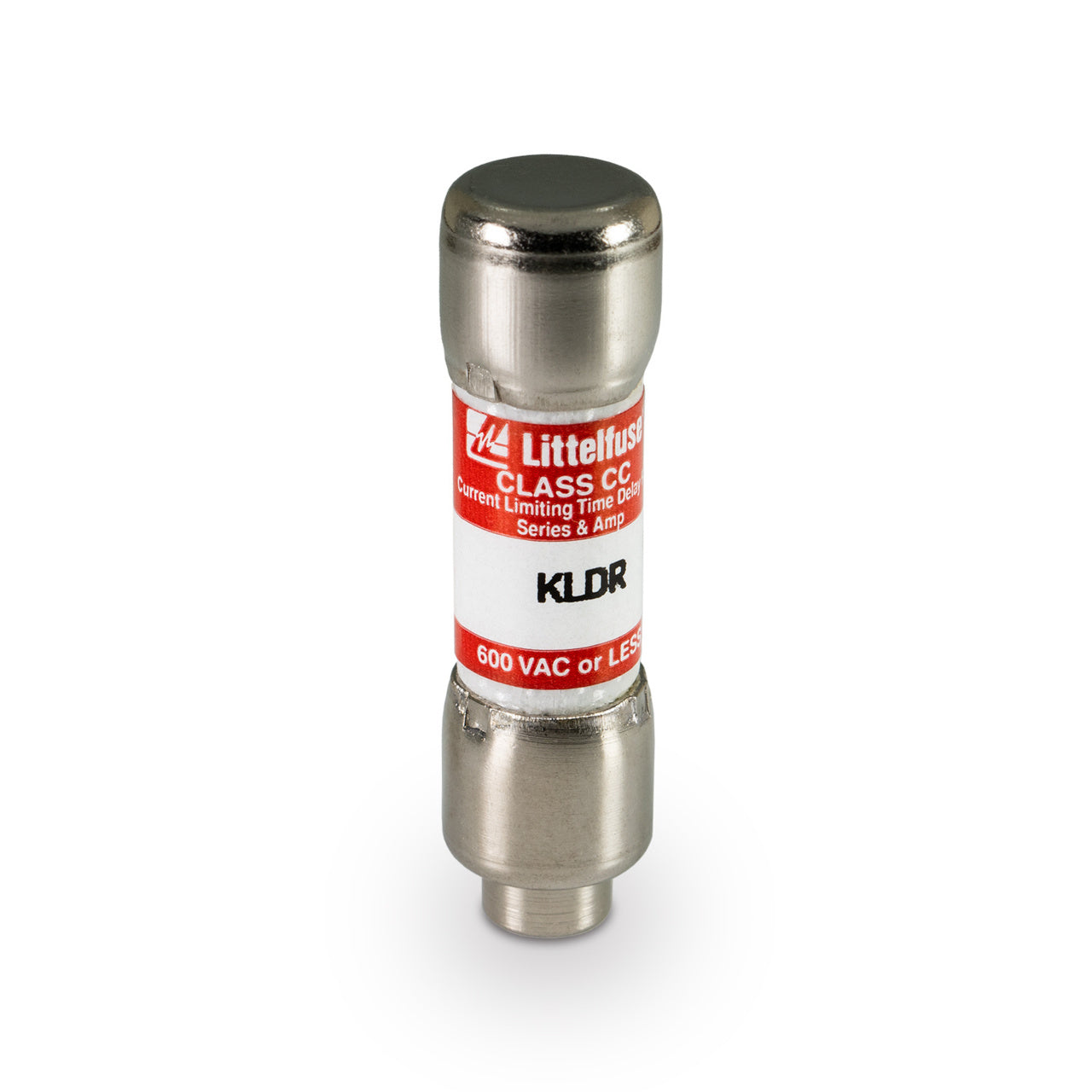

The Littelfuse KLDR012 is a Class CC midget time-delay fuse rated 12 A with voltage ratings of 600 VAC and 300 VDC. It is a current-limiting, dual-element cartridge fuse with a melamine body and ferrule terminals for holder mounting. The fuse measures 1.5 in length by 13/32 in diameter, offers 200 kA interrupting capacity at 600 VAC (20 kA at 300 VDC), and includes a rejection feature for compatible fuse blocks.

• 12 A, Class CC time-delay (dual-element) fuse; current-limiting design
• Rated 600 VAC / 300 VDC; interrupt rating 200 kA at 600 VAC and 20 kA at 300 VDC
• Cartridge size 1.5 in x 13/32 in, melamine body, ferrule terminals, holder mounting; rejection feature

Product Highlights

Class CC time-delay, 12 A, 600 VAC/300 VDC, 200 kA interrupt; 1.5 in x 13/32 in

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: KLDR012
• Country of Origin: Mexico

Technical Specifications

• Brand: Littelfuse
• MPN: KLDR012
• Series: KLDR
• Fuse Class: Class CC (Midget)
• Current Rating: 12 A
• Fuse Speed: Time delay (Slo-Blo)
• Element: Dual element
• Current Limiting: Yes
• AC Voltage Rating: 600 VAC
• DC Voltage Rating: 300 VDC
• Interrupting Rating (AC): 200 kA at 600 VAC
• Interrupting Rating (DC): 20 kA at 300 VDC
• Body Material: Melamine
• Body Dimensions: 1.5 in length x 13/32 in diameter
• Diameter: 13/32 in (0.40625 in)
• Length: 1.5 in
• Terminal Type: Ferrule terminal
• Mounting Type: Holder / fuse block mounting
• Rejection Feature: Yes
• Visual Indication: Nonindicating
• Compatible Fuse Block Series: L600C
• Standards and Approvals: UL 248-4, UL Listed, CSA, CE, RoHS
• Equivalent Series / Replacement: Bussmann FNQ-R, Mersen ATQR
• Pack Quantity: 10
• Country of Origin: Mexico
