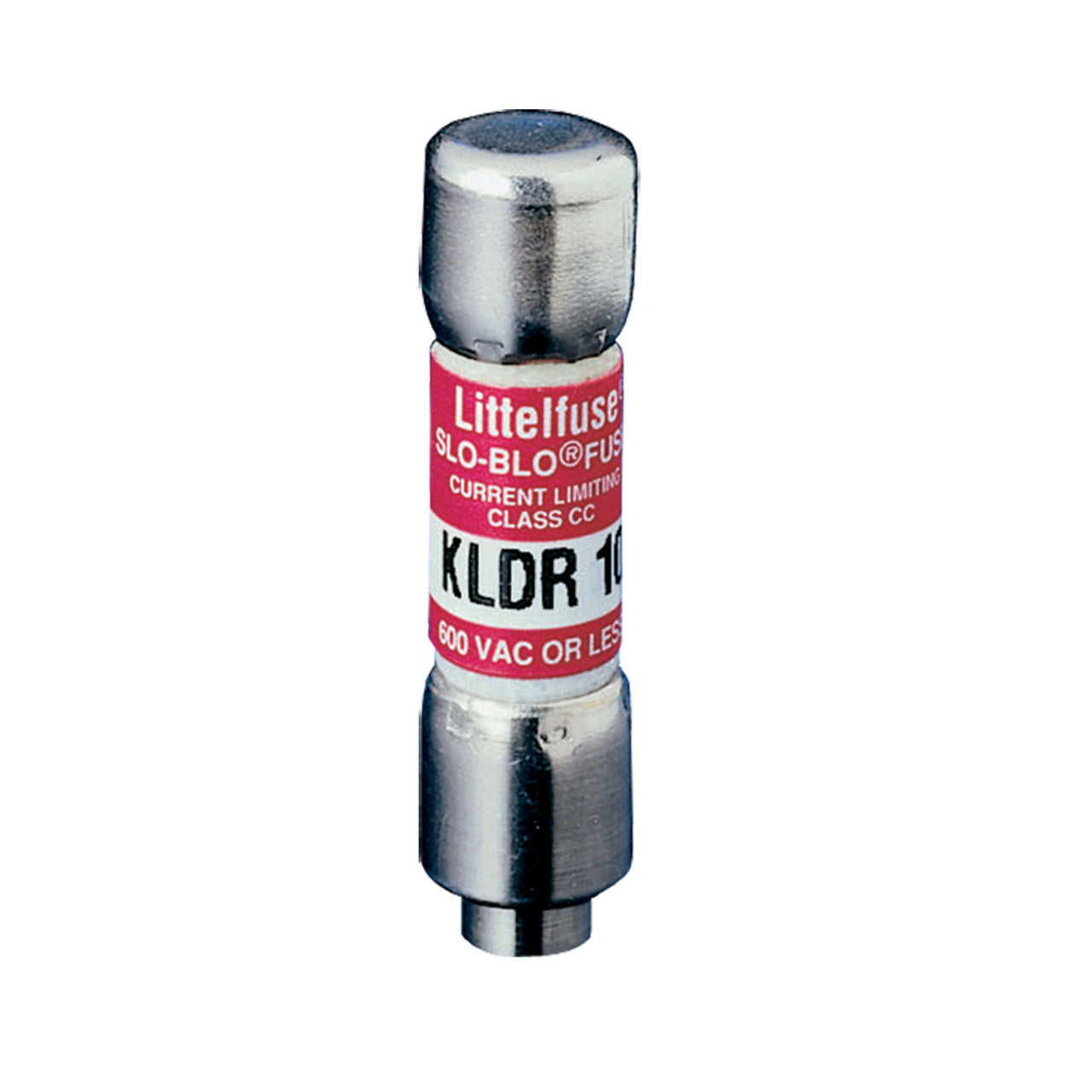

Littelfuse KLDR010.TXP Time Delay Fuse 600V 10A

Product Description

The Littelfuse KLDR010.TXP fuse is engineered for optimal performance in protecting control transformers, solenoids, and inductive components. Rated at 10 Amps and 600 Volts, this time-delay fuse accommodates high magnetizing currents effectively in industrial setups.

• Superior protection for motor branch circuits
• Current limiting design minimizes equipment damage during faults
• Compact size for space efficiency in electrical panels

Product Highlights

Specifically designed to withstand high inrush currents, the KLDR010.TXP provides robust protection in a compact form, making it ideal for industrial applications. The nickel-plated bronze cap enhances durability and conduction.

Product Information

Standard Information

• Brand: Littelfuse
• Series: POWR-GARD KLDR Series
• Class: CC

Technical Specifications

• Amperage: 10 Amps
• Voltage: 600 Volts
• Interrupt Rating: 200 kA at 600VAC, 20 kA at 300VDC
• Response Time: 12 seconds
• Mounting Type: Holder
• Body Material: Melamine
• Terminal Type: Ferrule
• Compliance: UL 248-4, CSA LR29862
