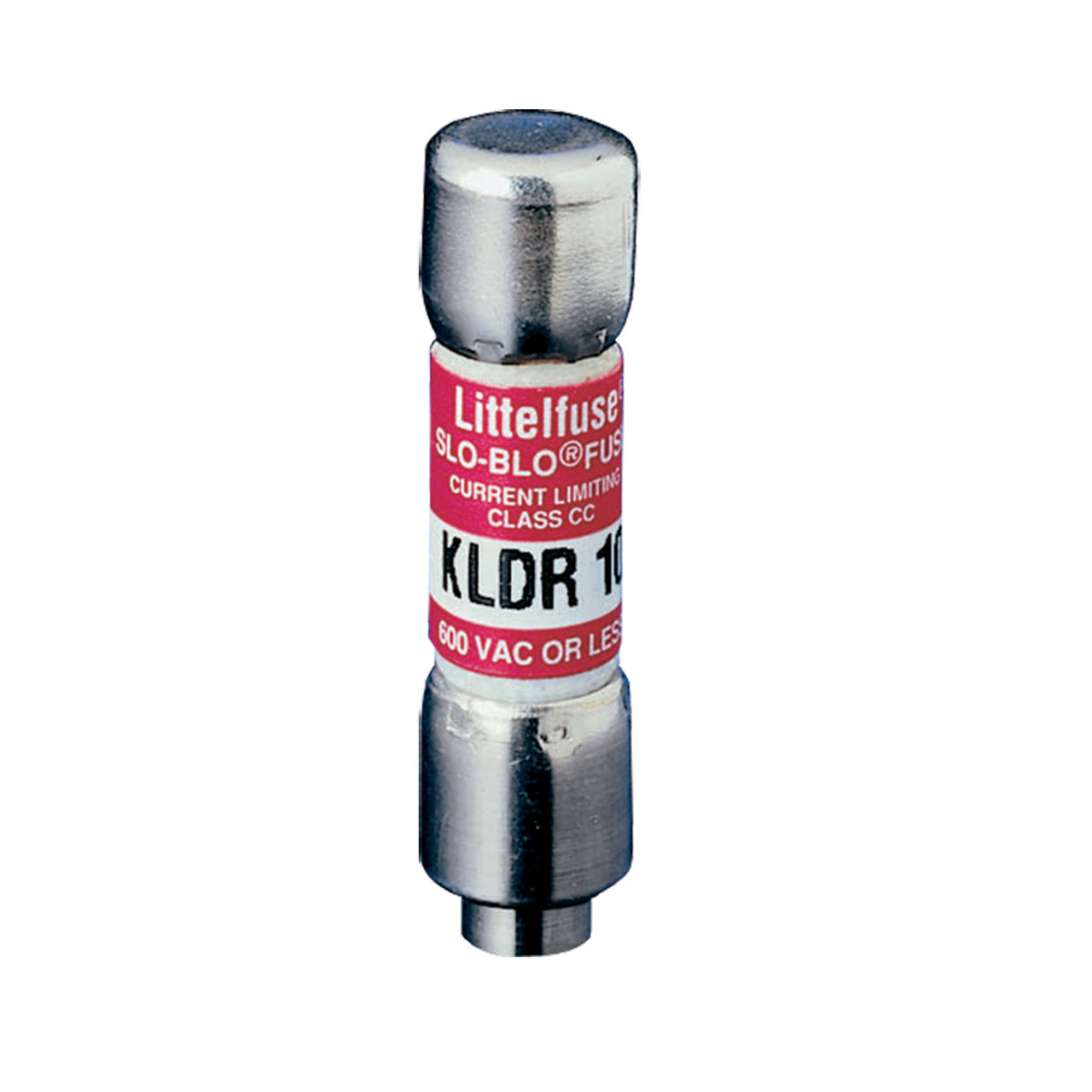

Littelfuse KLDR008.TXP LFSE KLDR008.TXP FUS 600V T/D CLASS

Product Description

The Littelfuse KLDR008.TXP is a time-delay fuse designed to protect control transformers, solenoids, and similar inductive components with high magnetizing currents. This fuse is critical for safeguarding motor branch circuits that contain IEC or NEMA rated motor controllers or contactors.

• Time-delay feature helps manage initial high inrush currents.
• Suitable for 600V AC and 300V DC applications.
• UL 248-4 approved, ensuring quality and safety standards.

Product Highlights

The KLDR008.TXP fuse is essential for applications requiring transformer protection. Its time-delay capability offers enhanced performance where power surges occur during device startup.

Product Information

Standard Information

• Brand: Littelfuse
• Catalog Number: KLDR008.TXP

Technical Specifications

• Amperage Rating: 8 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Type: Cartridge
• Response Time: 12 seconds
• Interrupt Rating: 20/200 kA
• Material: Melamine
• Mounting Type: Holder
• Rejection Feature: Yes
