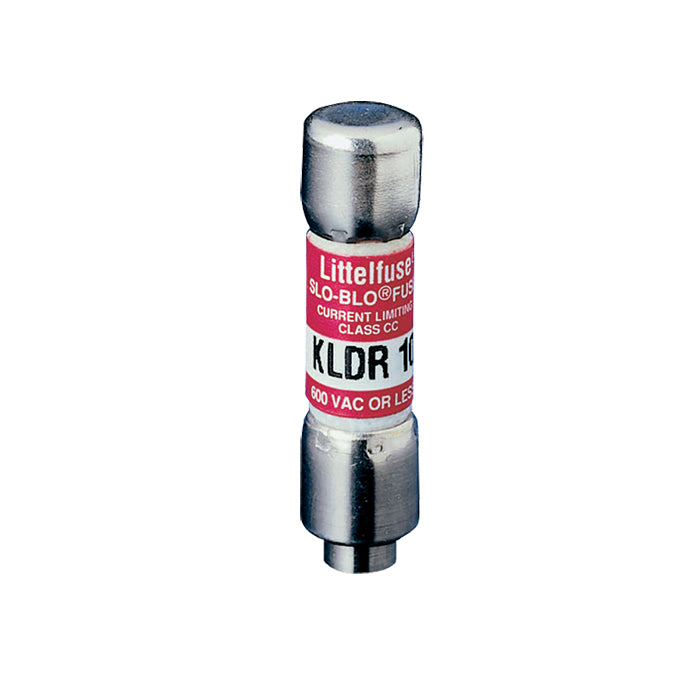

Littelfuse KLDR008.TXP Fuse 600V Time Delay Class CC

Product Description

The Littelfuse KLDR008.TXP is a Class CC time-delay fuse designed to effectively protect control transformers, solenoids, and motor circuits against high inrush currents. Popular in power distribution applications, it ensures stability and safety in electrical systems.

• Specifically engineered for transformer protection
• Features a 12-second minimum response time
• Constructed from durable melamine with a nickel-plated bronze cap

Product Highlights

This fuse operates with an 8 ampere current and a voltage rating of 600 VAC/300 VDC. It boasts an interruption capacity up to 200 kA at 600 VAC and 20 kA at 300 VDC, suitable for robust industrial settings.

Product Information

Standard Information

• Application: Transformer protection
• Features: Time-Delay, rejection type to prevent mismatch

Technical Specifications

• Amperage: 8 A
• Voltage: 600 VAC/300 VDC
• Interrupt Rating: 200/20 kA
• Size: 13/32 in Dia x 1-1/2 in L
• Compliance: UL 248-4, CSA Certified, RoHS
• Material: Melamine with nickel-plated components
