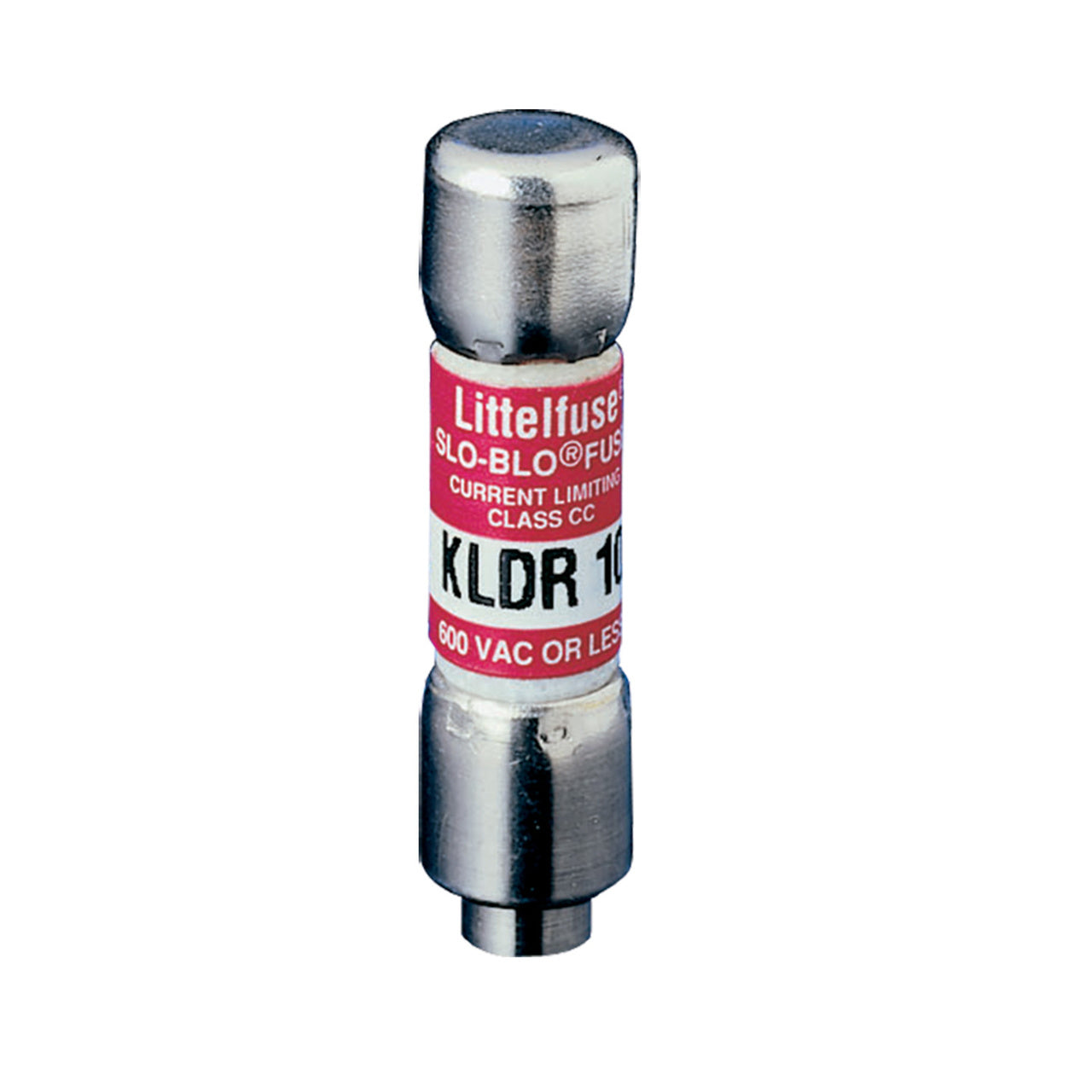

Littelfuse KLDR005.TXP Time Delay Fuse 600VAC 5A Class CC POWR-GARD

Product Description

Explore the reliability of the Littelfuse KLDR005.TXP, a Class CC POWR-GARD cartridge fuse designed for enhancing the safety of electrical systems. Predominantly used in industrial settings, this fuse is equipped with a 5 amp rating and operates at 600 volts AC. It is specifically engineered to protect equipment like control transformers, motor controllers, and solenoids from overload or short circuits.

• Time-delay feature to tackle transient currents and prevent nuisance trips.
• Compact design for space-efficient installation in fuse blocks and panels.
• High interrupting rating up to 200,000 amperes for superior performance.

Product Highlights

The KLDR005.TXP provides robust short circuit protection with its substantial interrupting capacity. Its current limiting capability minimizes the let-through energy, thereby protecting the downstream equipment effectively.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: KLDR005.TXP

Technical Specifications

• Type: Time Delay
• Class: CC
• Voltage Rating: 600 VAC
• Amperage: 5 A
• Interrupting Rating: 200 kA at 600 VAC
• Terminal Type: Ferrule
• Body Material: Melamine
• Mounting Type: Holder
• Product UPC: 079458792638
