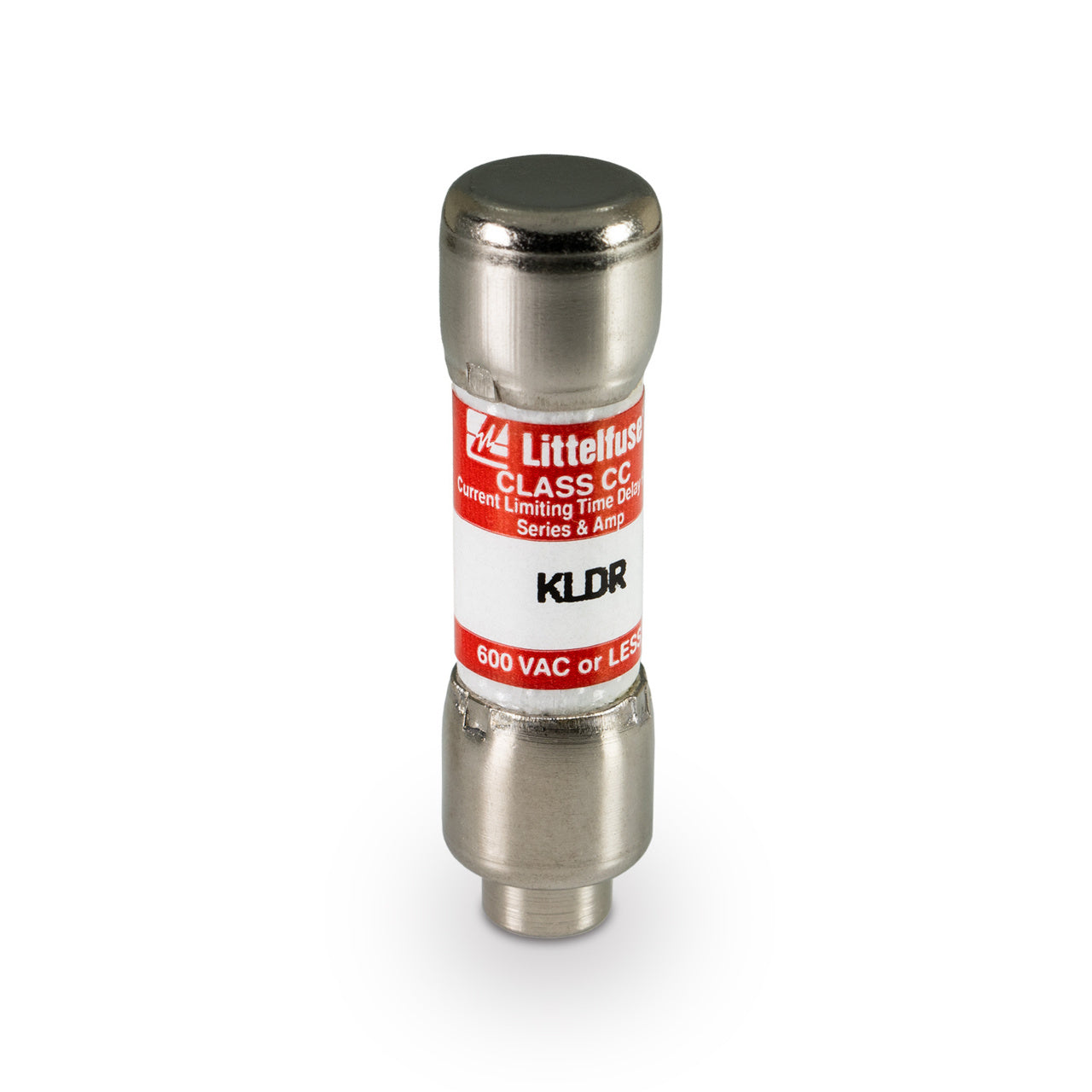

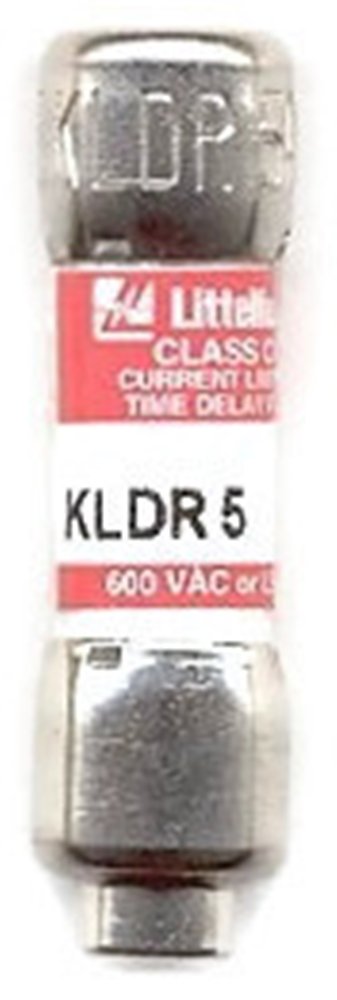

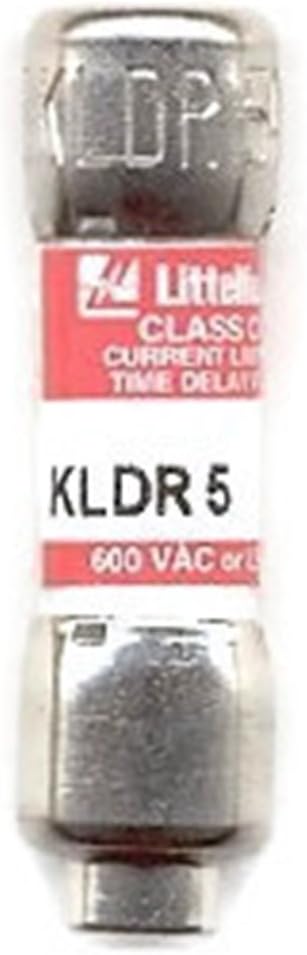

Littelfuse KLDR005 KLDR-5 5 A 600 V Cartridge Fuse Single

Product Description

The Littelfuse KLDR005 is a KLDR-series cartridge fuse rated 5 A and 600 V, intended for overcurrent protection in control and transformer circuits. KLDR005 is a time-delay, current-limiting Class CC fuse that accommodates inrush currents while protecting downstream components. It is supplied as a single unit and is compatible with standard cartridge fuse installations where Class CC form factor and high interrupting ratings are required.

• Current rating: 5 A; time-delay (slow-blow) characteristic for inrush tolerance
• Voltage rating: 600 V AC (also specified for 300 V DC in product family), Class CC current-limiting design
• High interrupting capability with cartridge fuse form factor; supplied as single unit

Product Highlights

Class CC time-delay 5 A, 600 V cartridge fuse for control and transformer circuit protection

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: KLDR005
• Country of Origin: Mexico (subject to change)

Technical Specifications

• Brand: Littelfuse
• MPN: KLDR005
• Series: KLDR
• Product Type: Cartridge fuse (Class CC)
• Current Rating (A): 5 A
• Time Characteristic: Time delay (slow-blow)
• Voltage Rating (AC): 600 V
• Voltage Rating (DC): 300 V
• Current Limiting: Yes
• Interrupting Rating (AC): 200000 A @ 600 V
• Interrupting Rating (DC): 20000 A @ 300 V
• Nominal Cold Resistance (Ohms): 0.0399
• Dimensions: 0.406 in diameter x 1.5 in length (0.406 x 0.406 x 1.5 in)
• Package Quantity: 1
• Fuse Class: Class CC
• Mounting Method: Fuse block / clip / holder compatible
• Approvals / Standards: UL 248-4; UL Listed; CSA; CE
• RoHS Compliant: Yes
• Body Material: Melamine
• Form Factor: Midget / Subminiature (Class CC)
