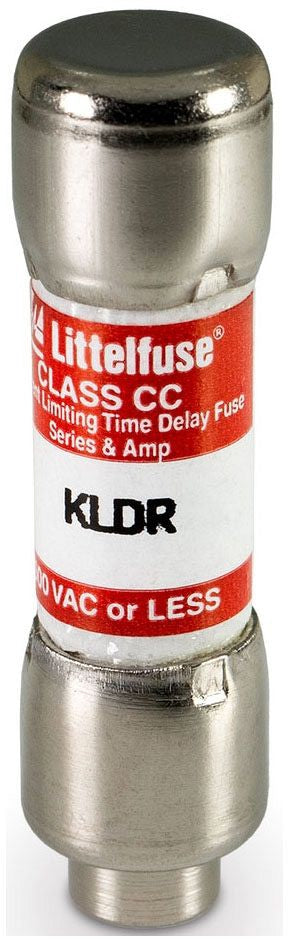

Littelfuse KLDR003.TXP LFSE KLDR003.TXP FUS 600V T/D CLASS (3A) REPLACEMENT MPN

Product Description

Littelfuse KLDR003.TXP is a current limiting time delay fuse designed for applications that require protection for control transformers and solenoids. This fuse is specifically crafted to guard against surges and to accommodate high magnetizing currents during operation. It can handle up to 600 volts alternating current and 300 volts direct current, making it suitable for various industrial applications.

• Time delay function for high inrush current protection.
• Rated for 3 amps with high interrupting ratings.
• Appropriate for transformer protection applications.

Product Highlights

This fuse offers robust protection for motor branch circuits that may contain IEC or NEMA rated components, ensuring safe operation within electrical systems.

Product Information

Standard Information

• Catalog Number: KLDR003.TXP
• Manufacturer: Littelfuse

Technical Specifications

• Type: Class CC
• Amperage Rating: 3 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
• Response Time: 12 seconds
• Material: Melamine
• Terminal Type: Ferrule
• Standard: UL 248-4
