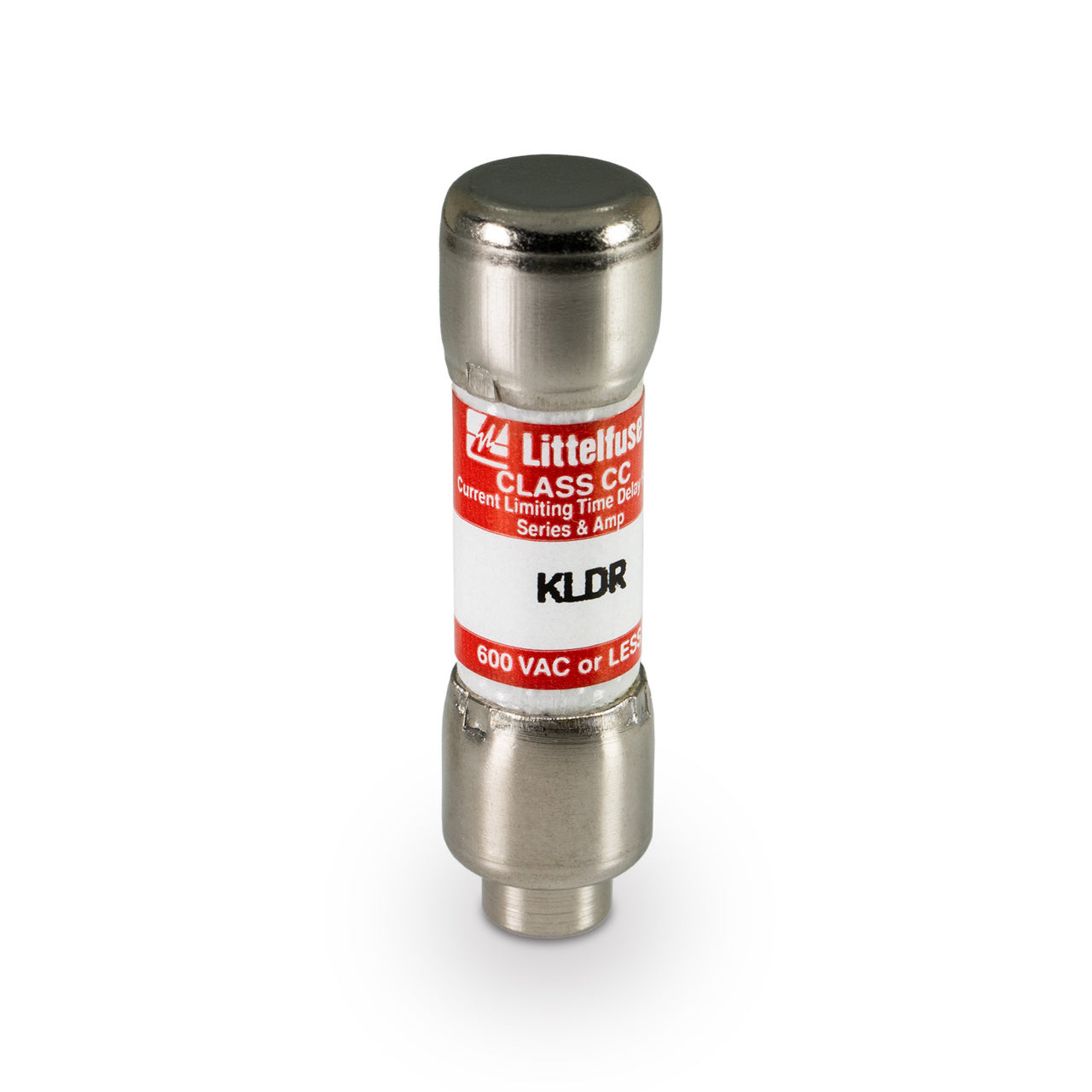

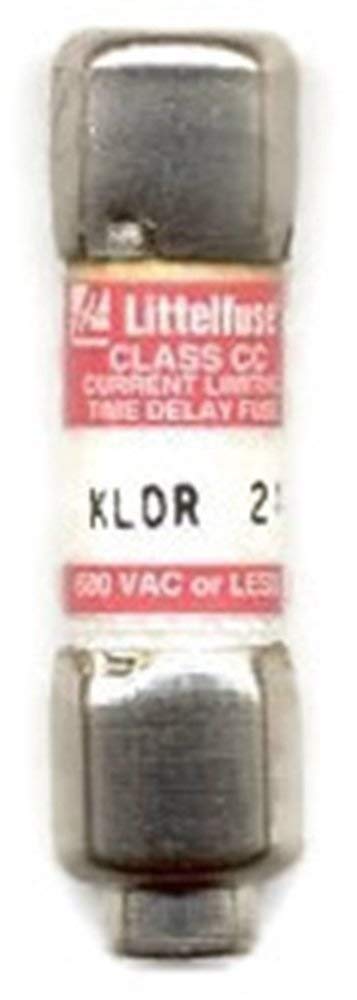

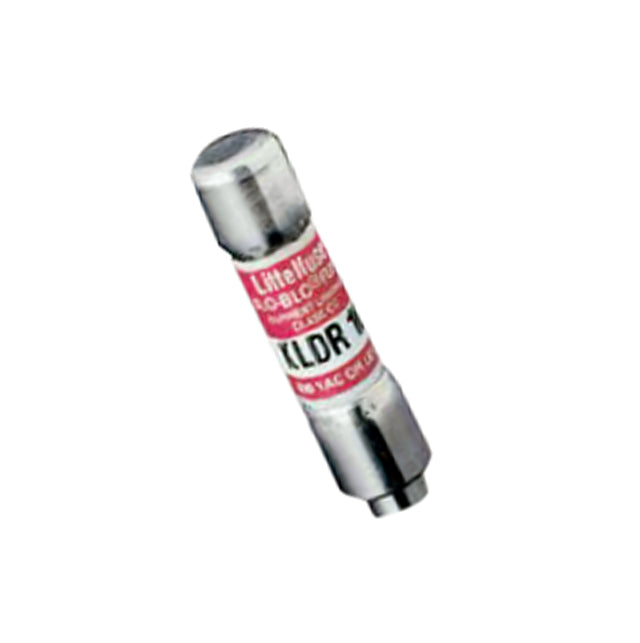

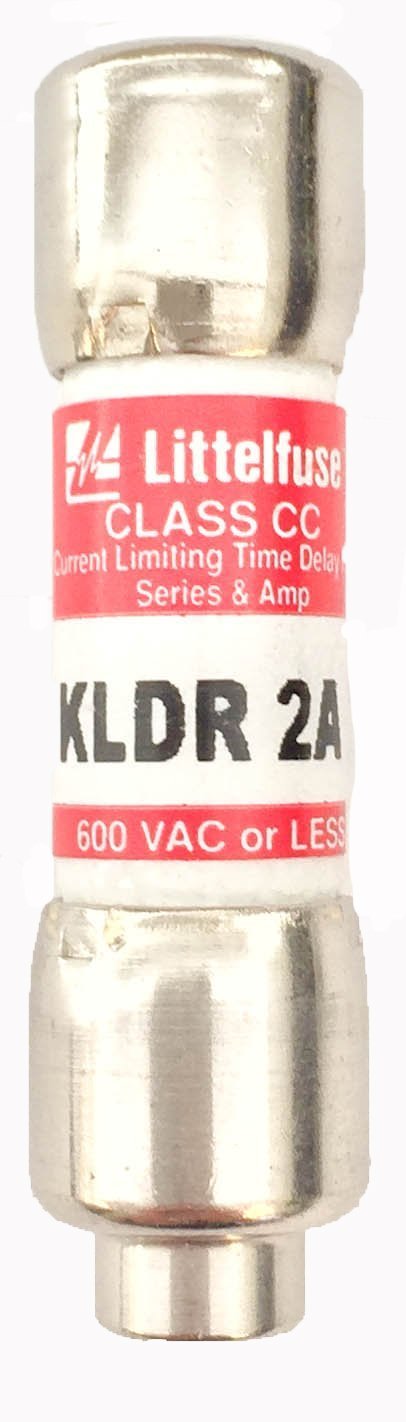

Littelfuse KLDR002 KLDR-2 2 A 600 V (1 Pack)

Product Description

Littelfuse KLDR002 is a Class CC cartridge fuse with a 2 A continuous rating and a 600 VAC (300 VDC) voltage rating, intended for overcurrent protection in control circuits. The KLDR series is time-delay (slow-blow) and dual-element to tolerate inrush currents from transformers and solenoids while providing current-limiting protection. It features a cylindrical melamine body, nonindicating construction, and a high interrupting rating.

• 2 A continuous rating; Class CC time-delay (slow-blow) fuse for transformer and control circuit protection
• Voltage rating: 600 VAC and 300 VDC; interrupting rating 200 kA at 600 VAC and 20 kA at 300 VDC
• Physical: dual-element cylindrical melamine body, approximately 1.5 in length x 13/32 in diameter; clip terminal/nickel-plated bronze cap

Product Highlights

Class CC, dual-element time-delay cartridge fuse; 2 A; 600 VAC/300 VDC; 200 kA AC interrupting rating; nonindicating; RoHS compliant.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: KLDR002
• Country of Origin: Mexico
