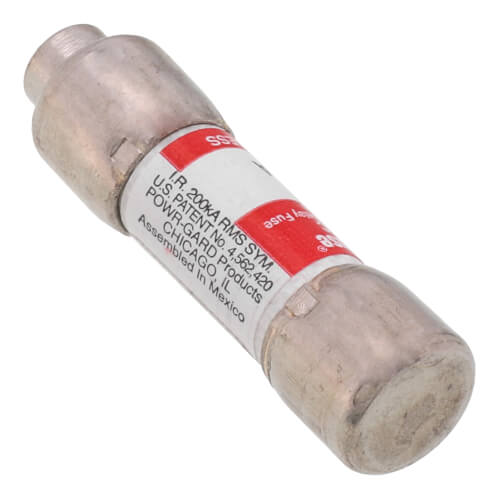

Littelfuse KLDR001.TXP Time Delay Fuse 1A 600V Class CC

Product Description

The Littelfuse KLDR001.TXP is a time-delay fuse designed for protecting control transformers, solenoids, and inductive components that exhibit high magnetizing currents during the initial operating cycle. It's suitable for motor branch circuits that utilize IEC or NEMA rated motor controllers or contactors, ensuring effective protection against high current conditions.

• Time-delay feature accommodates startup currents without tripping.
• Current limiting capability minimizes system damage during short-circuits.
• Rated for 600V applications and has a 1A current capacity.

Product Highlights

This fuse operates with a unique delay mechanism to handle brief overloads, preventing unnecessary service interruptions. Its compact design makes it an ideal choice for space-constrained applications.

Product Information

Standard Information

• Brand: Littelfuse
• Type: Class CC
• Application: Transformer Protection
• Mounting Type: Holder

Technical Specifications

• Interrupt Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
• Body Material: Melamine
• Dimensions: 13/32 in Dia x 1-1/2 in L
• Response Time: 12 seconds
• Terminal Type: Ferrule
