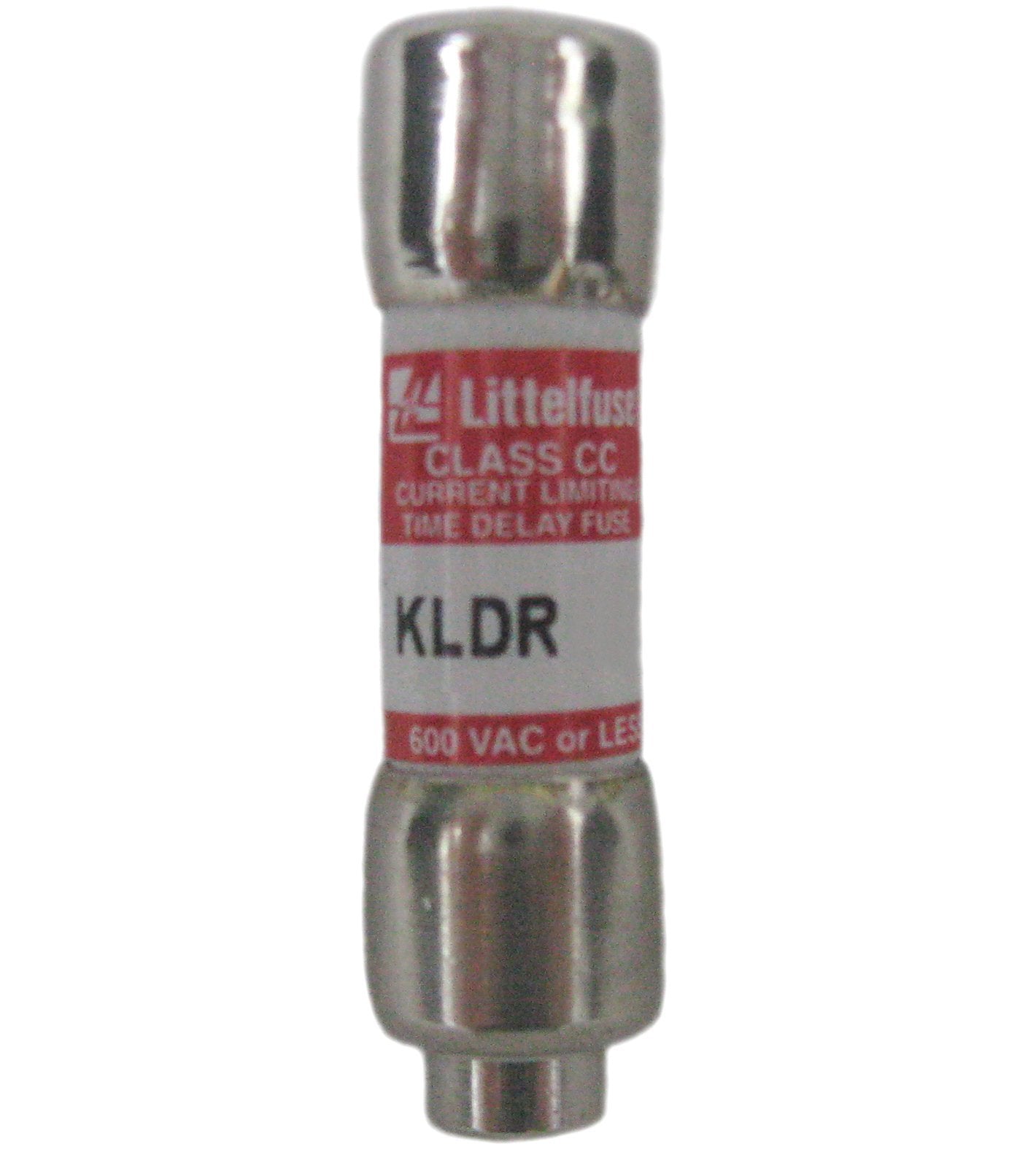

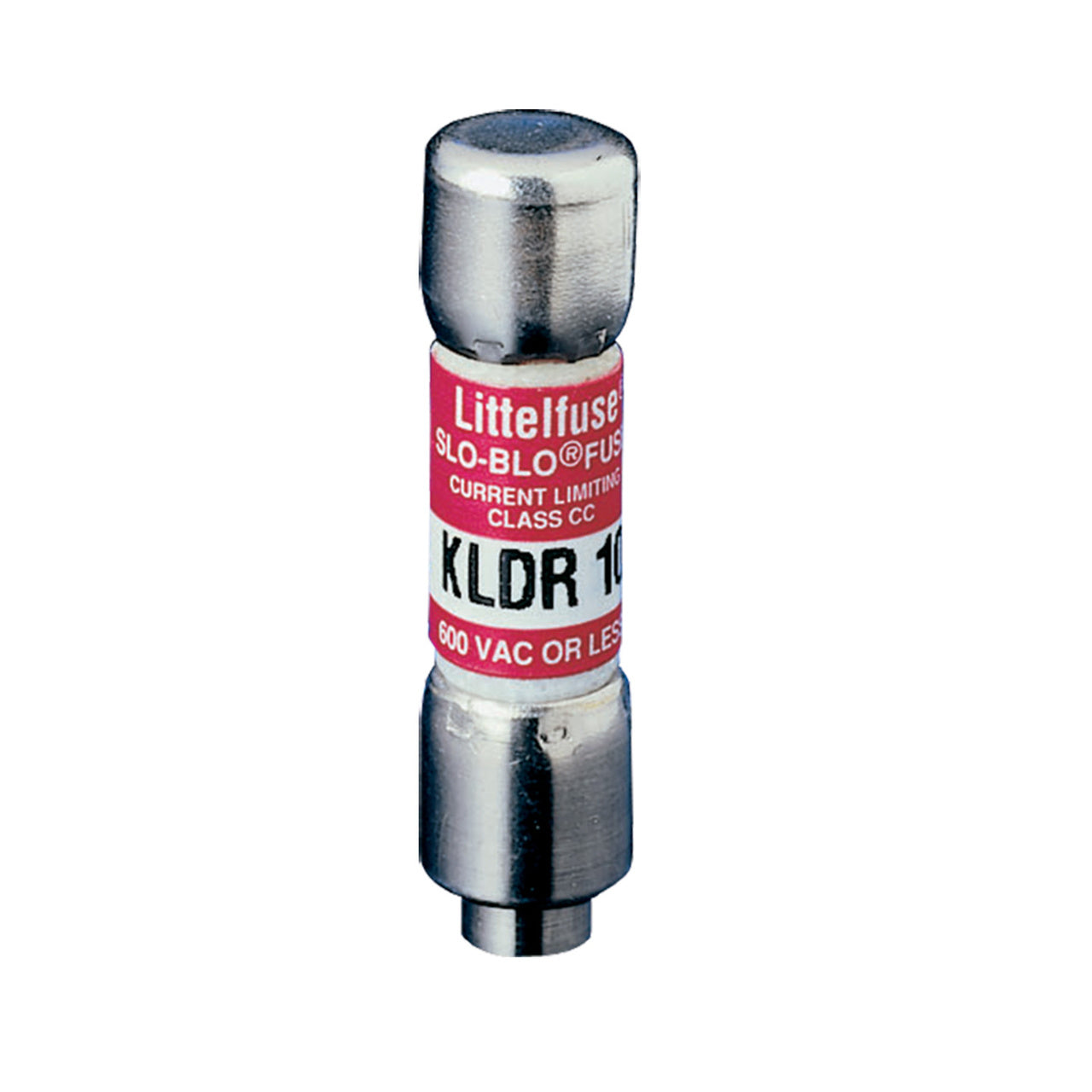

Littelfuse KLDR.800TXP Fuse 600V 0.8 Amp Time Delay

Product Description

The Littelfuse KLDR.800TXP Fuse is a 600V time-delay fuse designed to protect control transformers, solenoids, and similar inductive components. It helps prevent damage during the initial high magnetizing currents. This fuse ensures excellent protection of motor branch circuits, especially with IEC or NEMA rated motor controllers or contractors.

• Time-delay fuse for high magnetizing currents.
• Excellent for motor branch circuit protection.
• Compact and highly current limiting.

Product Highlights

Ideal for use in electrical distribution systems, industrial control panels, motor protection, and lighting circuits. The Littelfuse KLDR.800TXP provides reliable circuit protection against overcurrents with a time delay mechanism allowing for temporary overcurrents without tripping.

Product Information

Standard Information

• Brand: Littelfuse
• Series: KLDR
• Type: Current Limiting

Technical Specifications

• Catalog Number: KLDR.800TXP
• Voltage Rating: 600 VAC/300 VDC
• Current Rating: 0.8 Amps
• Response Time: 12 s
• Mounting Type: Holder
• Body Type: Cartridge
• Amperage Rating: 0.8 A
• Material: Melamine
