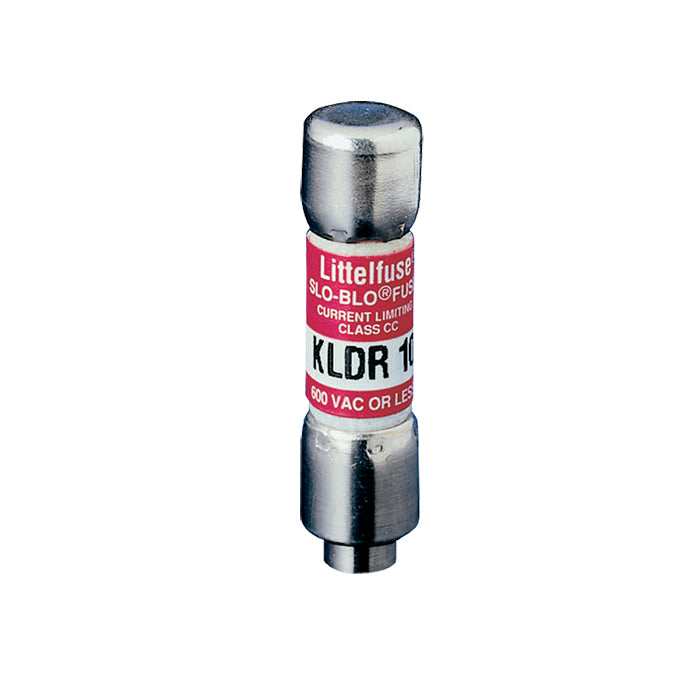

Littelfuse KLDR.600TXP Fuse 600V T/D Class CC .600A Rohs

Product Description

Littelfuse KLDR.600TXP is a current limiting time-delay fuse designed for transformer protection applications. This fuse operates at zero point six amperes and can handle 600 volts alternating current or 300 volts direct current. With a high interrupt rating of 20/200 kA, it is capable of preventing damage caused by short-circuit currents. It has a rejection feature that helps ensure only compatible fuses are used in the corresponding holders, thus enhancing safety and reliability.

• Time-delay characteristics for inductive loads
• High interrupting ratings for robust protection
• UL listed, meeting safety standards while providing reliable performance

Product Highlights

This fuse features non-indicating and rejection capabilities, making it ideal for protecting control transformers and other electrical components subject to inrush currents during start-up phases.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: KLDR.600TXP

Technical Specifications

• Type: Current Limiting
• Class: CC
• Application: Transformer Protection
• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 0.6 A
• Response Time: 12 s
• Material: Melamine
• Body Size: 13/32 in Dia x 1-1/2 in L
