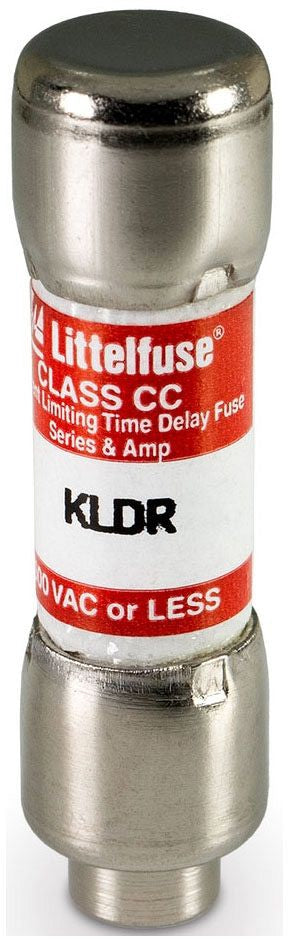

Littelfuse KLDR.400TXP Fuse 600V T/D Class CC .400A Rohs

Product Description

The Littelfuse KLDR.400TXP is a time-delay fuse designed for transformer protection applications. This fuse operates at six hundred volts AC and three hundred volts DC with a rating of zero point four amperes. It features a current limiting design that reduces damage caused by short circuits.

• Time-delay operation enhances protection for inductive loads.
• Designed specifically for transformer protection applications.
• Compliance with UL standards ensures reliability.

Product Highlights

The KLDR.400TXP fuse is essential for protecting control transformers and similar equipment. Its design allows for safe operation and effective current limiting during overload conditions.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer: Littelfuse

Technical Specifications

• Catalog Number: KLDR.400TXP
• Application: Transformer Protection
• Amperage Rating: 0.4 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 20/200 kA
• Type: Class CC Rejection
• Response Time: 12 seconds
• Body Size: 13/32 inches Diameter x 1-1/2 inches Length
• Material: Melamine
• Terminal Type: Ferrule
• Standard: 248-4 UL Listed, Class CC
• Country of Origin: Mexico
