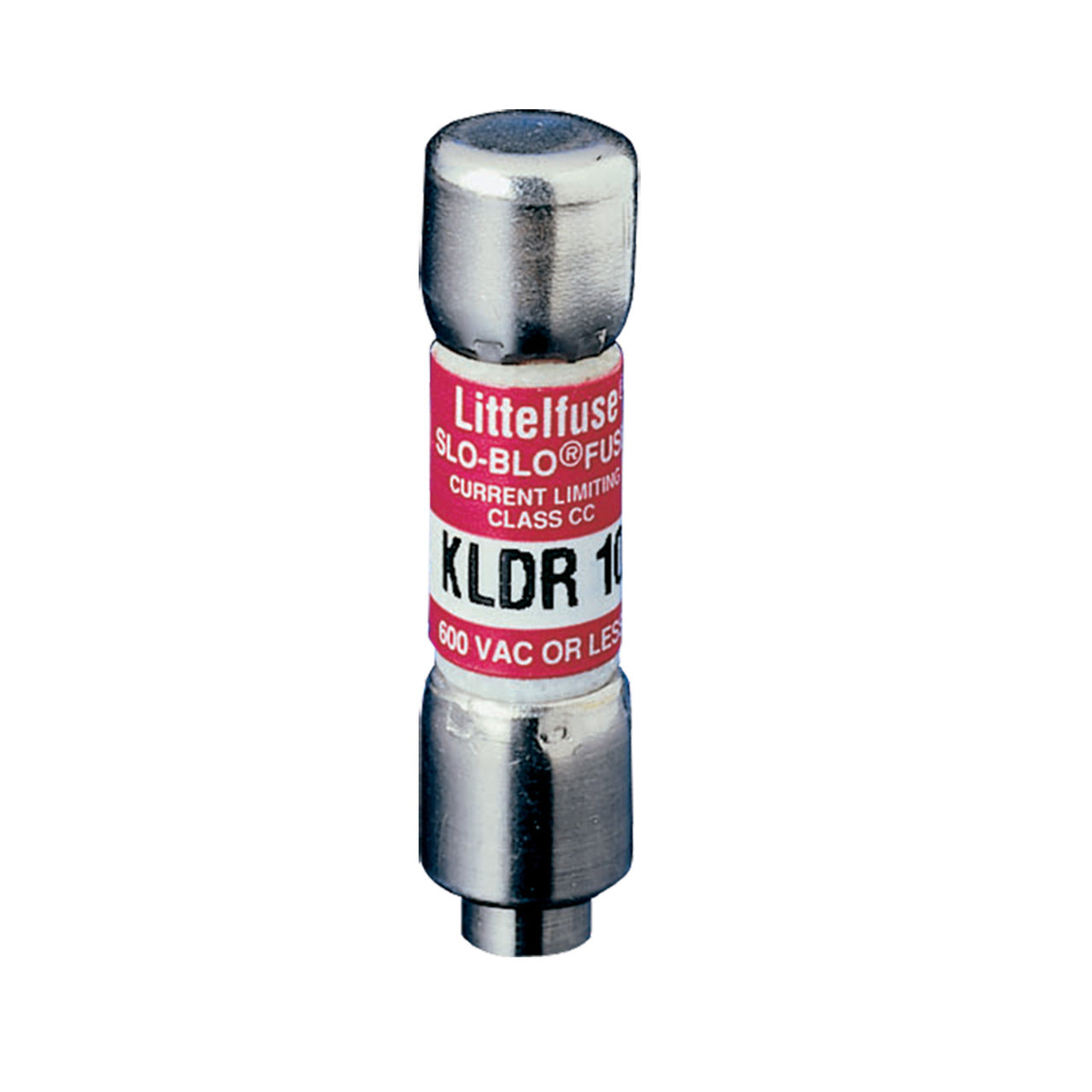

Littelfuse KLDR.250TXP Time Delay Fuse 600V Class CC

Product Description

The Littelfuse KLDR.250TXP Time Delay Fuse is engineered for reliable circuit protection. Ideal for control transformers, solenoids, and inductive components, this fuse handles high magnetizing currents efficiently, making it an optimal choice for professional settings concerned with electrical safety and performance.

• Exceptionally current-limiting to minimize circuit damage
• Class CC, providing strong performance in a compact size
• Effective protection up to 200,000 amps interrupt rating

Product Highlights

Featuring a time-delay design, the KLDR.250TXP offers enhanced protection against transient current spikes, ensuring operating stability and extending the service life of electrical components. Its robust design adheres to UL 248-4 standards for safety and reliability.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: KLDR.250TXP
• Class: CC

Technical Specifications

• Amperage: 0.25A
• Voltage Rating: 600V AC / 300V DC
• Interrupt Rating: 200 kA at 600V AC, 20 kA at 300V DC
• Body Material: Melamine
• Terminal Type: Ferrule
• Mounting Type: Holder
• Dimensions: 13/32 inch diameter x 1 1/2 inches length
• Response Time: 12 seconds
