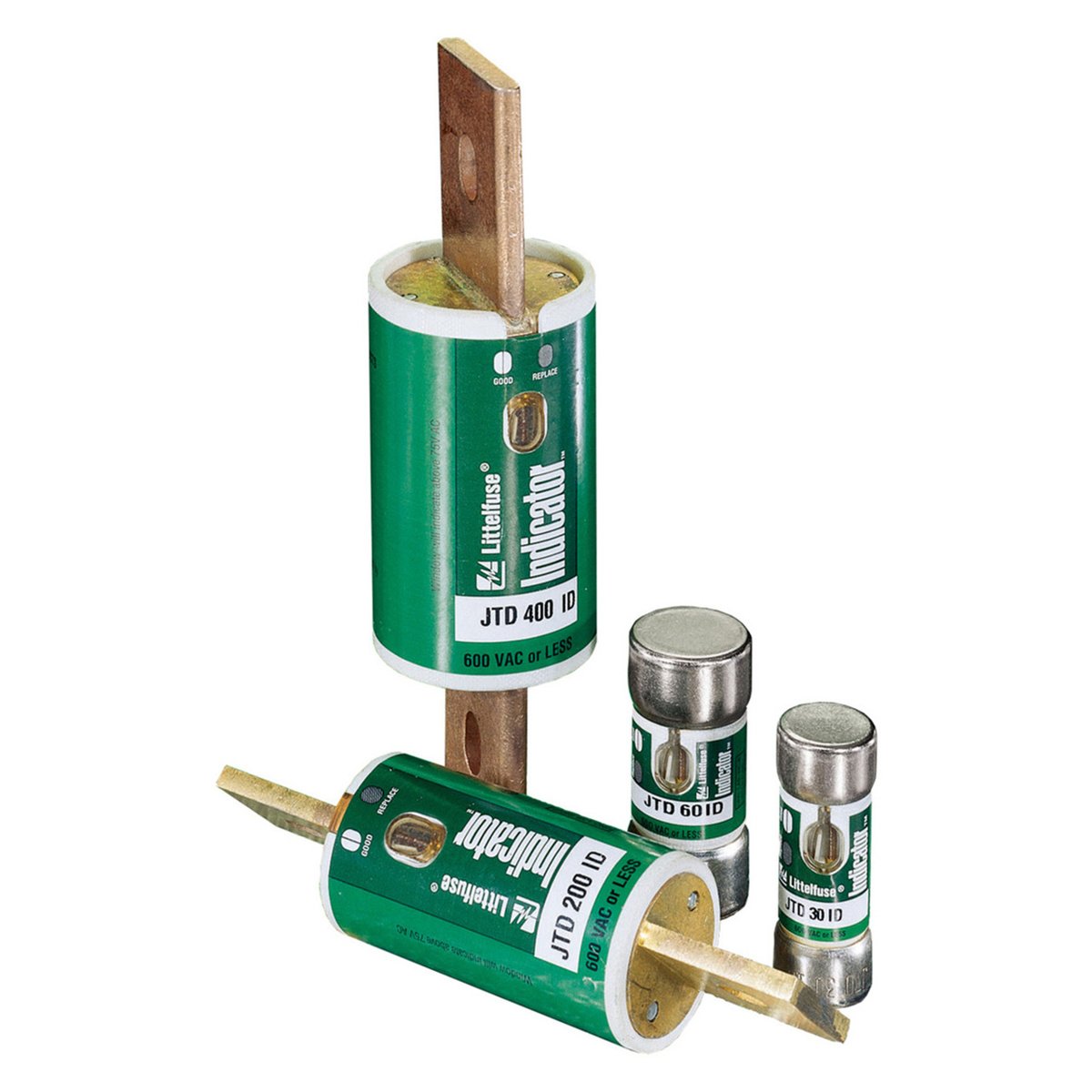

Littelfuse JTD350ID The Littelfuse POWR-PRO JTD_ID Indicator Class J 350A (Each)

Product Description

The Littelfuse POWR-PRO JTD_ID Indicator Class J fuse is designed to provide visual blown fuse indication and maximum protection in a compact package. This fuse is suitable for applications where space is limited. It features a current limiting time delay with a patented dual-element design for high inrush current circuits. The JTD_ID Indicator fuse minimizes nuisance opening and helps to reduce downtime.

• Amperage rating of three hundred fifty.
• Voltage rating of six hundred VAC and five hundred VDC.
• Time-delay design to prevent nuisance opening in high current applications.

Product Highlights

This fuse is ideal for motor control centers and includes a blown fuse indication for quick assessment of faults. It improves safety by reducing exposure to live circuits and helps maintain operation efficiency.

Product Information

Standard Information

• Product Name: Littelfuse POWR-PRO JTD_ID Indicator Class J Fuse
• Manufacturer: Littelfuse

Technical Specifications

• Catalog Number: JTD350ID
• Amperage Rating: 350 A
• Voltage Rating: 600 VAC/500 VDC
• Body Type: Cartridge
• Body Size: 2 inches Diameter x 7-1/8 inches Length
• Terminal Type: Knife Blade
• Standards: UL 248-8, CSA
• Country of Origin: Mexico
