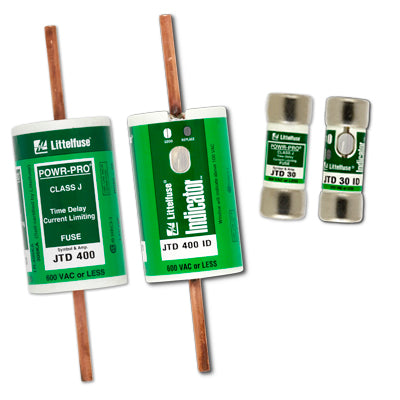

Littelfuse JTD200ID 200 Amp 600 VAC 500 VDC Class J Time Delay Fuse with Indicator

Product Description

The Littelfuse JTD200ID is a 200 Amp time delay fuse designed for high voltage applications. This fuse has a voltage rating of 600 VAC and 500 VDC, making it suitable for various industrial applications. The compact design is ideal for confined spaces, ensuring maximum protection and performance.

• 200 Amp current rating for high load applications.
• Visual blown fuse indication for quick identification.
• Designed for use in motor control centers and general purpose circuits.

Product Highlights

The JTD200ID time delay fuse combines reliability with safety features. It reduces downtime by allowing immediate identification of blown fuses while minimizing nuisance opening, making it a necessity for industrial operations.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Type: Class J Time Delay Fuse

Technical Specifications

• Catalog Number: JTD200ID
• Voltage Rating: 600 VAC / 500 VDC
• Amperage Rating: 200 A
• Interrupt Rating: 200/20 kA
• Body Size: 1-1/2 in Dia x 5-3/4 in L
• Material: Melamine
• Mounting Type: Bolt
• Terminal Type: Knife Blade
