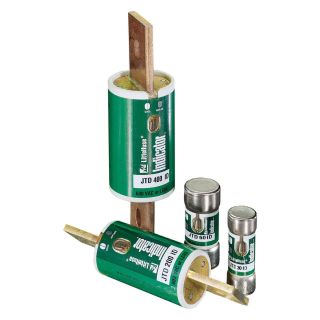

Littelfuse JTD175ID Current Limiting Time Delay Fuse 17.5 A 600 VAC/300 VDC 200/20 kA Interrupt

Product Description

The Littelfuse JTD175ID is a current limiting time delay fuse designed to provide superior protection in electrical circuits. This fuse operates at 17.5 amps and is rated for 600 VAC and 300 VDC. It features a compact Class J design that is ideal for applications where space is limited. The patented dual-element design helps to manage inrush currents effectively, reducing nuisance openings.

• Current Limiting Time Delay Design

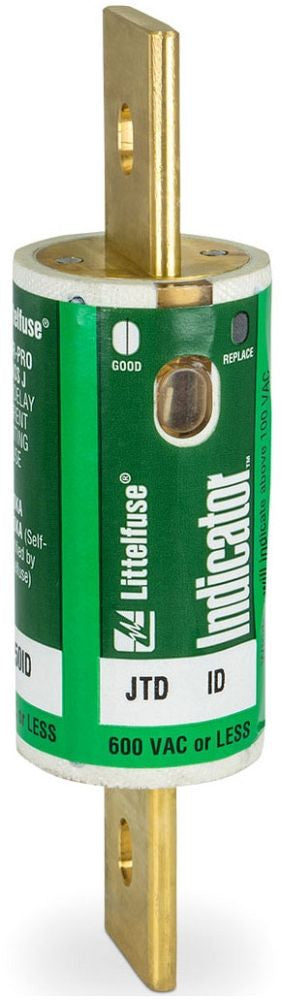

• Visual blown fuse indication for easy maintenance
• Reduces equipment damage and downtime

Product Highlights

It includes a ferrule terminal for easy installation and is housed in a durable cartridge body made from melamine.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: JTD175ID

Technical Specifications

• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 17.5 A
• Interrupt Rating: 200/20 kA
• Class: J
• Element: Dual
• Body Size: 13/16 in diameter x 2-1/4 in length
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Ferrule
• Application: Motor Control Centers
• Country of Origin: Mexico
