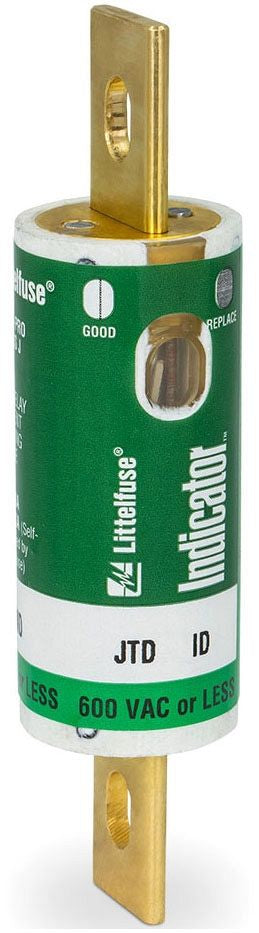

Littelfuse JTD100ID Fuse 600V T/D Class J 100A Indicating

Product Description

The Littelfuse JTD100ID is a 100 amp fuse designed for 600 VAC applications. This time-delay indicating fuse is ideal for motor control centers. It uses a unique dual-element design that helps reduce nuisance opening and enhances equipment protection.

• Time-delay feature helps reduce downtime.
• Indicating capability allows for quick identification of blown fuses.
• Dual-element design provides superior overload protection.

Product Highlights

The Littelfuse JTD100ID is part of the POWR-GARD series, made in Mexico. It offers reliable performance in demanding applications.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: JTD100ID

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Size: 1-1/8 inches diameter x 4-5/8 inches length
• Class: J
• Interrupting Rating: 200/20 kA
• Element Type: Dual
• Material: Melamine
• Terminal Type: Knife Blade
