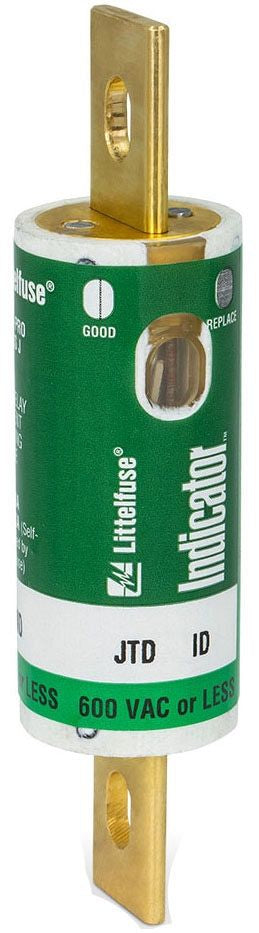

Littelfuse JTD080ID 80 Amp 600 VAC 300 VDC Class J Time Delay Fuse

Product Description

The Littelfuse JTD080ID is a time delay fuse designed for maximum protection in electrical applications. With a current rating of eighty amps and a voltage rating of six hundred volts alternating current and three hundred volts direct current, this fuse is built for high performance in various settings.

• Indicator feature shows when the fuse is blown
• Compact design suitable for tight spaces
• Time delay function reduces nuisance opening

Product Highlights

This Class J fuse is perfect for circuits with high inrush currents and prevents unnecessary downtime with its visual blown fuse indication.

Product Information

Standard Information

• Catalog Number: JTD080ID
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 80 Amps
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200/20 kA
• Body Size: 1-1/8 inches diameter x 4-5/8 inches length
• Body Type: Cartridge
• Terminal Type: Knife Blade
• Approval: UL 248-8, CSA, CE
• Special Features: Time Delay, Class J
