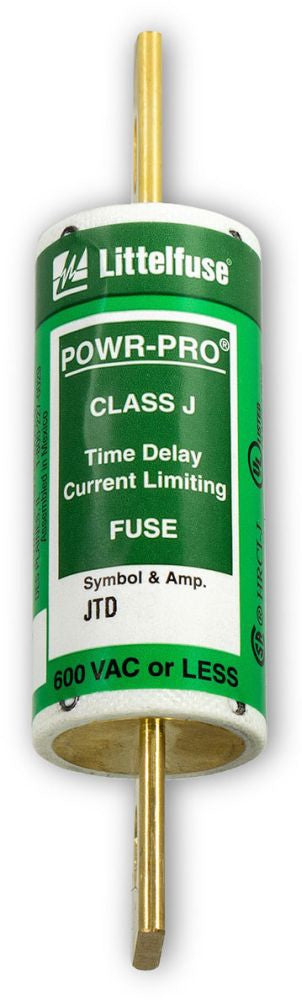

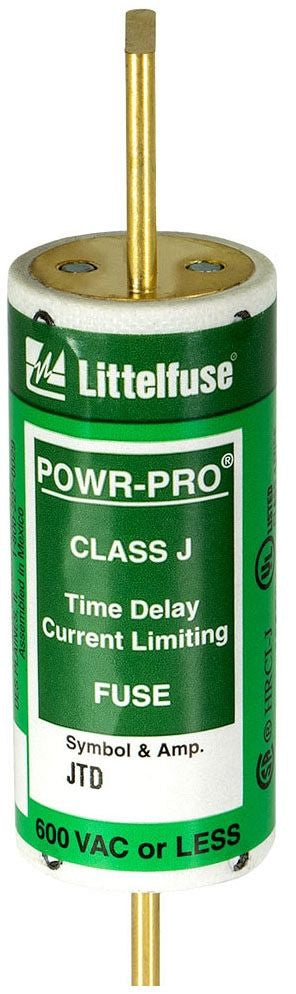

Littelfuse JTD080 Fuse 600V T/D Class J 80A

Product Description

The Littelfuse JTD080 is a time-delay fuse designed to protect equipment in various electrical applications. It has a rating of eighty amperes and operates at six hundred volts. This fuse is ideal for motor control centers and provides superior overload and short circuit protection.

• Rated for eighty amperes
• Time-delay feature minimizes unnecessary outages
• Compatible with a variety of applications

Product Highlights

The Littelfuse JTD080 fuse enhances safety and operational efficiency by reducing downtime and preventing nuisance tripping.

Product Information

Standard Information

• Catalog Number: JTD080
• Manufacturer: Littelfuse

Technical Specifications

• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 80 A
• Body Size: 1-1/8 in Diameter x 4-5/8 in Length
• Interrupt Rating: 200 kA
• Class: J
• Terminal Type: Knife Blade
• Material: Melamine
• Application: Motor Control Centers
• Standards/Approvals: UL 248-8, CSA
