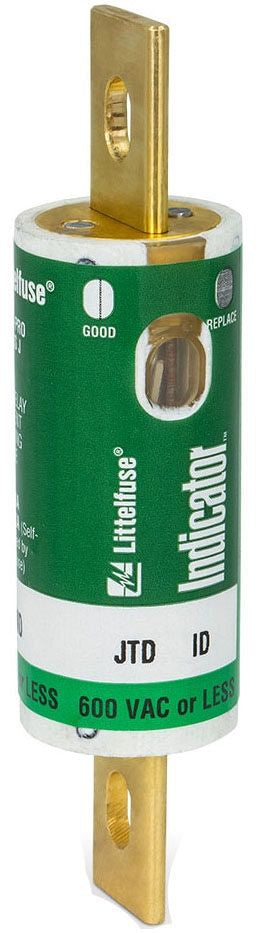

Littelfuse JTD070ID Fuse 600V T/D Class J 70A Indicating

Product Description

The Littelfuse JTD070ID is a time delay fuse designed for applications that require overload and short-circuit protection. This fuse operates at a voltage rating of six hundred volts and a current rating of seventy amperes. It features a glass indicating window that provides immediate visual confirmation of a blown fuse.

• Rated for use in motor control centers.
• Class J rating for easy integration into existing systems.
• Time-delay characteristic to reduce nuisance tripping.

Product Highlights

The Littelfuse JTD070ID is ideal for critical applications where downtime should be minimized.

Product Information

Standard Information

• Catalog Number: JTD070ID
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 70 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 200000 Ampere (Symmetrical)
• Body Size: 1-1/8 inches diameter x 4-5/8 inches length
• Material: Melamine
• Terminal Type: Knife Blade
• Approvals: UL 248-8, CSA, CE
• Sub Brand: POWR-GARD JTD Series
• Country of Origin: Mexico
