Littelfuse JTD035ID Littelfuse POWR-GARD JTD035ID Current Limiting Time Delay Fuse 35 A 600 VAC/300 VDC

Product Description

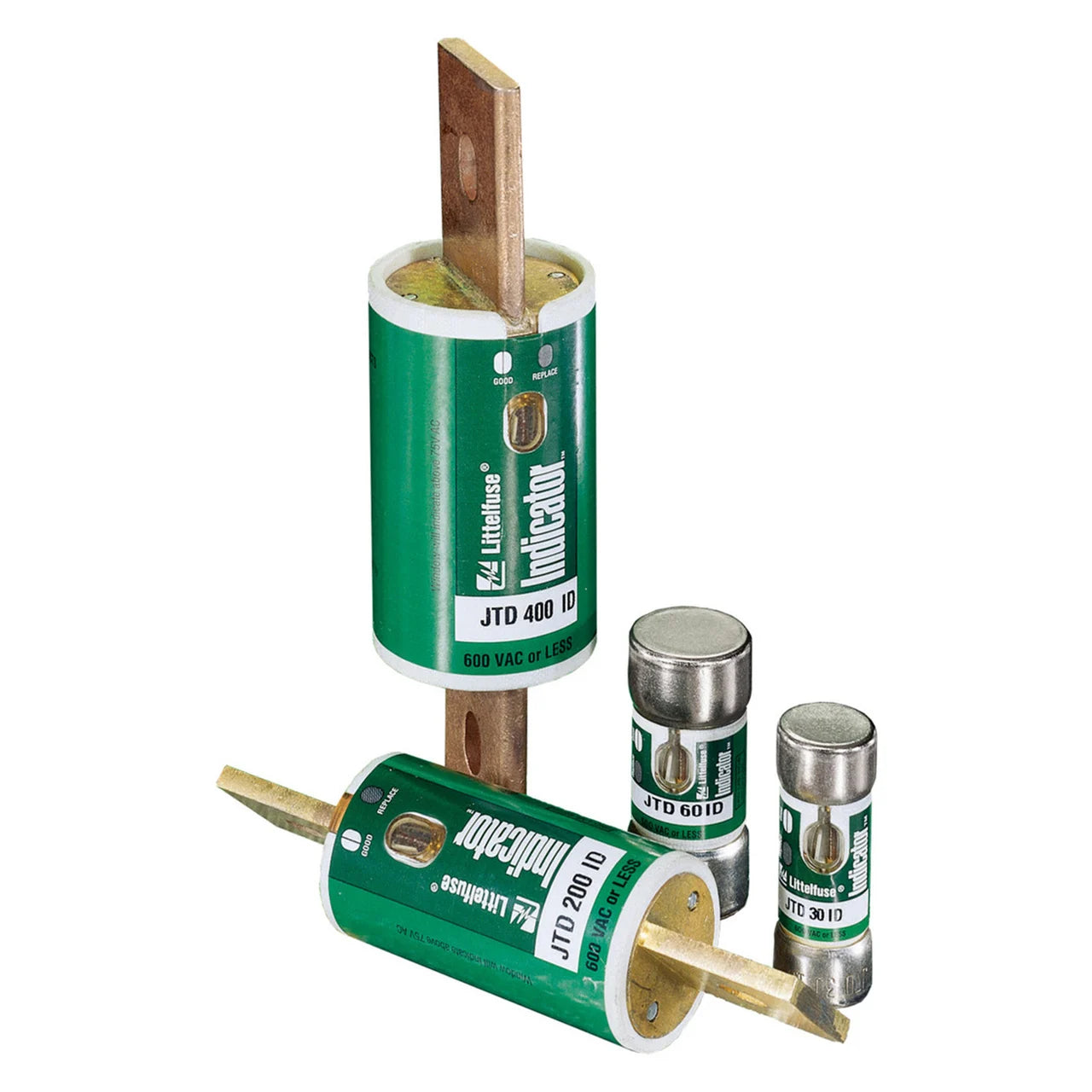

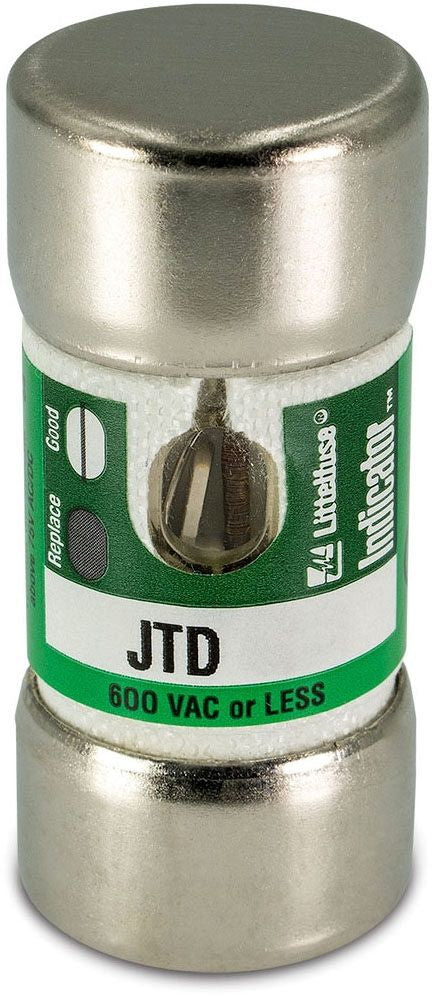

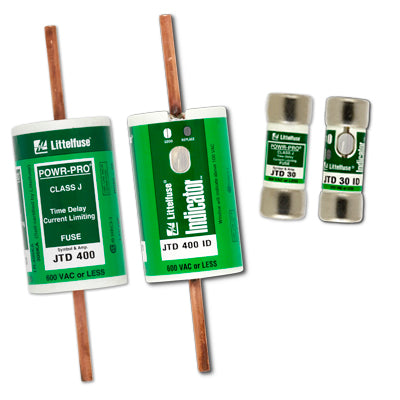

The Littelfuse POWR-GARD JTD035ID Current Limiting Time Delay Fuse provides superior protection and visual blown fuse indication. This product is designed for circuits where space is limited. It features a dual-element design that is effective for circuits with high inrush currents.

• Current Limiting Time Delay Design
• Visual Indicator for Blown Fuse
• Compact Size for Space-Constrained Applications

Product Highlights

The JTD035ID is engineered with advanced time-delay and cycling characteristics to reduce nuisance openings, extending fuse life and minimizing downtime.

Product Information

Standard Information

• Catalog Number: JTD03.5ID
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 35 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupting Rating: 200/20 kA
• Body Size: 1-1/16 in Dia x 2-3/8 in L
• Body Type: Cartridge
• Terminal Type: Ferrule
• Series: JTD
• Application: Motor Control Centers
