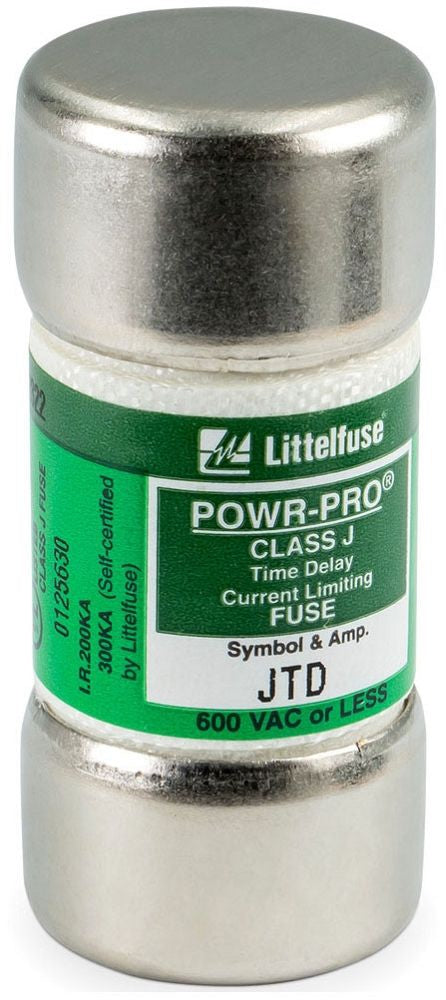

Littelfuse JTD035 Fuse 35A 600V T/D Class J

Product Description

The Littelfuse JTD035 is a time-delay fuse rated for thirty-five amperes and six hundred volts. This Class J fuse is used primarily for motor control centers. It offers excellent overload protection and is ideal in applications that experience high inrush currents.

• Time-delay feature to reduce nuisance blowing.
• Rated for six hundred volts AC and three hundred volts DC.
• Compact design with a diameter of one point zero six inches and a length of two point three eight inches.

Product Highlights

This fuse is essential for applications requiring reliable current limiting and protection against short circuits and overloads.

Product Information

Standard Information

• Brand: Littelfuse
• Catalog Number: JTD035

Technical Specifications

• Amperage Rating: 35 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 200,000 Ampere (Symmetrical)
• Body Size: 1-1/16 inches diameter x 2-3/8 inches length
• Terminal Type: Ferrule
• Standards/Approvals: UL 248-8, CSA
• Country of Origin: Mexico
• Material: Melamine
