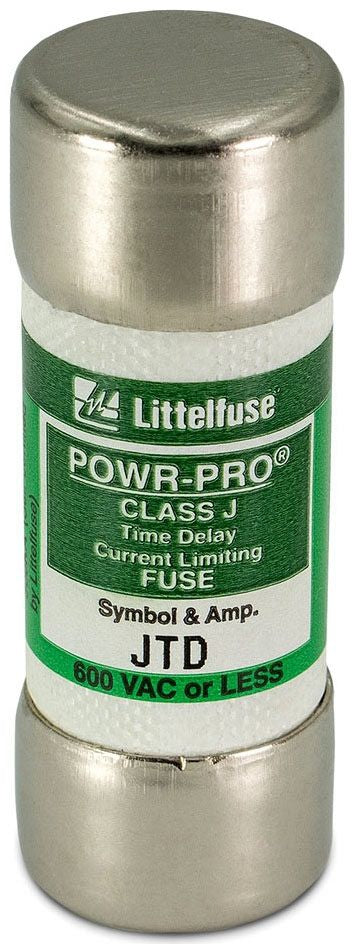

Littelfuse JTD025 Industrial & Electrical Fuses UL Class J Time-Delay Fuses 25 AMP

Product Description

The Littelfuse JTD025 is a Class J time-delay fuse with a rating of twenty-five amps. This fuse is designed for circuits that require protection in a compact package. It features a patented dual-element design that provides maximum protection while minimizing nuisance fuse openings. Ideal for motor control centers and other applications where space is limited, the JTD025 ensures reliable operation even under high inrush current conditions.

• Class J time-delay fuse with twenty-five amp rating
• Patented dual-element design
• Ideal for motor control centers and transformer protection

Product Highlights

The JTD025 is suitable for a variety of applications, including transformer protection, general purpose circuits, and fused combination motor controllers.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: JTD025

Technical Specifications

• Amperage Rating: 25 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 200,000 Amps (Symmetrical)
• Diameter: 0.81 inches
• Length: 2.25 inches
• Terminal Type: Ferrule
• Approval: UL 248-8, CSA
