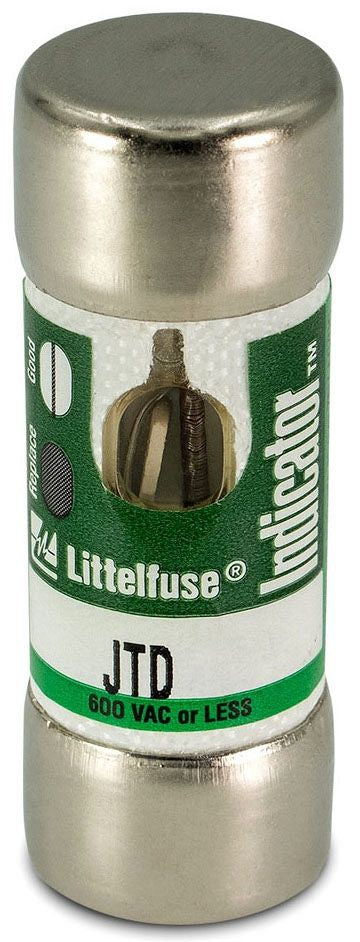

Littelfuse JTD015ID 15 Amp 600 VAC 300 VDC Class J Time Delay Fuse with Indicator

Product Description

The Littelfuse JTD015ID is a 15 Amp time delay fuse designed for use in circuits with voltage ratings up to 600 VAC and 300 VDC. This Class J fuse features an indicating window for visual blown fuse indication which helps reduce downtime during maintenance. Ideal for applications such as motor control centers and transformer protection, it helps minimize equipment damage and maintenance costs.

• Time-delay function reduces nuisance openings.
• Compact design suitable for space-constrained environments.
• Visual indication of fuse status improves safety and maintenance efficiency.

Product Highlights

The JTD015ID uses a patented dual-element design that provides both overload and short-circuit protection, specifically for high inrush current applications. This design also ensures reduced inventory needs as it can be utilized across various applications while maintaining high performance.

Product Information

Standard Information

• Brand: Littelfuse
• Type: Class J

Technical Specifications

• Catalog Number: JTD015ID
• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 15 A
• Interrupt Rating: 200,000 Ampere (Symmetrical)
• Body Size: 13/16 in Diameter x 2-1/4 in Length
• Terminal Type: Ferrule
• Material: Melamine
• Mounting Type: Holder
• UL Listing: UL 248-8
