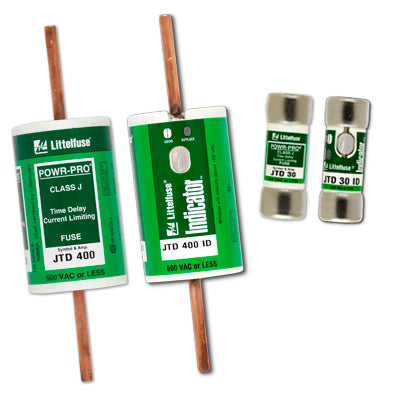

Littelfuse JTD009ID Current Limiting Time Delay Fuse 9A 600V 0JTD009.TXID

Product Description

The Littelfuse POWR-GARD JTD009ID is a time delay fuse with a current limiting feature. It operates at nine amperes and is rated for six hundred volts alternating current and three hundred volts direct current. This fuse features a dual-element design in a cartridge body made from melamine. It is suitable for motor control center applications.

• 9 A amperage rating
• 600 VAC/300 VDC voltage rating
• 200/20 kA interrupt rating

Product Highlights

This fuse provides visual blown fuse indication and has a compact size for limited space applications. The indicating window allows for quick identification of blown fuses, reducing downtime.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Type: Time Delay Fuse

Technical Specifications

• Amperage Rating: 9 A
• Body Size: 13/16 inches diameter x 2-1/4 inches length
• Body Type: Cartridge
• Class: J
• Electrical Rating: 600 VAC/300 VDC
• Interrupt Rating: 200/20 kA
• Element Type: Dual
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Ferrule
• Standards/Approvals: UL 248-8, CSA
