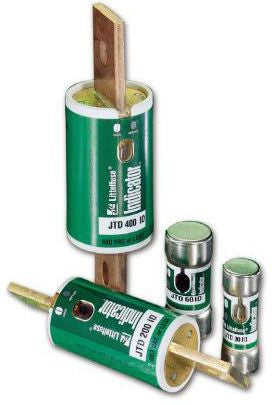

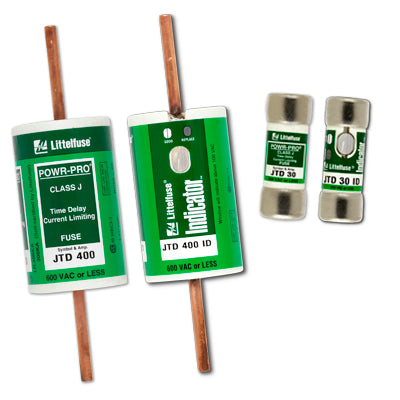

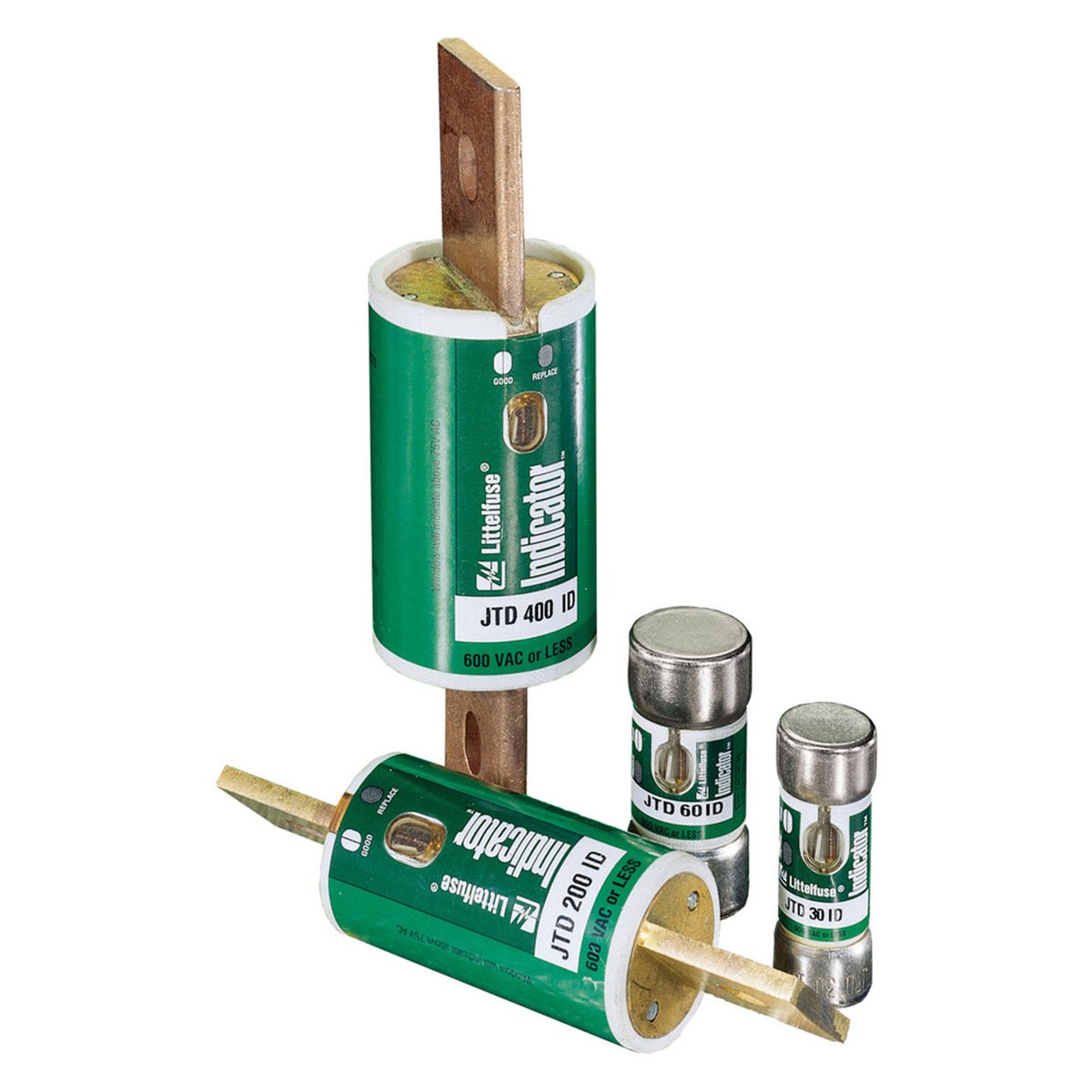

Littelfuse JTD004 LIT Time Delay Fuse 4 A 600 VAC/300 VDC J Class

Product Description

The Littelfuse JTD004 is a current limiting time delay fuse designed for motor control applications. This fuse features a dual-element design ideal for circuits with high inrush currents. With a voltage rating of six hundred volts alternating current and three hundred volts direct current, it ensures reliable performance in demanding environments.

• Amperage rating: four A
• Interrupt rating: two hundred/ twenty kA
• Body size: thirteen sixteenths inches diameter by two and one-quarter inches long

Product Highlights

This fuse provides visual indication of blown fuses, enhancing safety and reducing downtime. The compact design is particularly beneficial for installations with space constraints.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: JTD004

Technical Specifications

• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 4 A
• Interrupt Rating: 200/20 kA
• Body Type: Cartridge
• Class: J
• Element: Dual
• Mounting Type: Holder
• Terminal Type: Ferrule
• Country of Origin: MX
