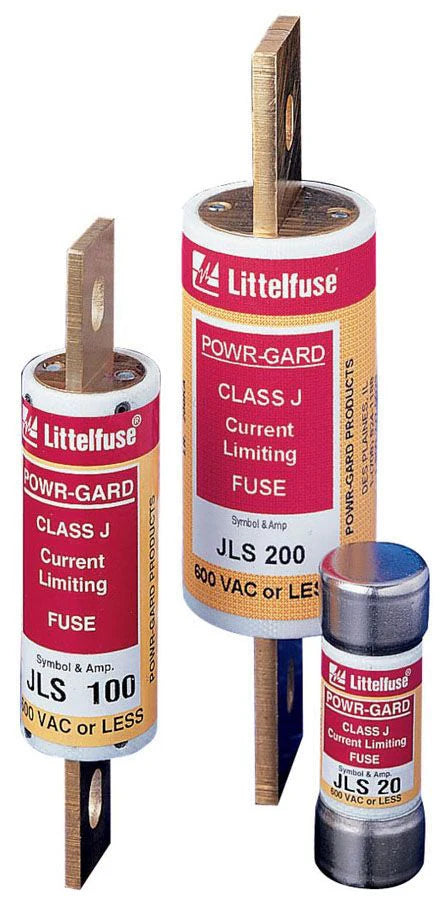

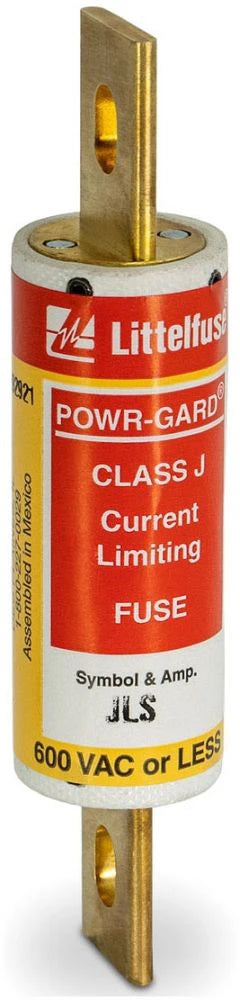

Littelfuse JLS100 100 Amp 600 VAC Class J Fast Acting Fuse

Product Description

The Littelfuse JLS100 is a 100 Amp, 600 VAC Class J fast acting fuse designed for optimal overload and short-circuit protection. This fuse is suitable for non-inductive loads and is reliable in various industrial applications. When used with inductive loads, it may require a higher amp rating to prevent nuisance tripping.

• Fast-acting protection for critical equipment
• Designed for general-purpose circuits
• Current limiting capability enhances equipment life

Product Highlights

This fuse not only protects equipment but also allows for easier standardization across voltage ratings.

Product Information

Standard Information

• Brand: Littelfuse
• Sub Brand: POWR-GARD JLS Series

Technical Specifications

• Amperage: 100 Amp
• Voltage: 600 VAC
• Application: General Purpose
• Interrupting Rating: 200,000 Ampere
• Body Size: 1 inch diameter x 4.63 inches length
• Mounting Type: Bolt
• Terminal Type: Blade
• Standards/Approval: UL 248-8, CSA
