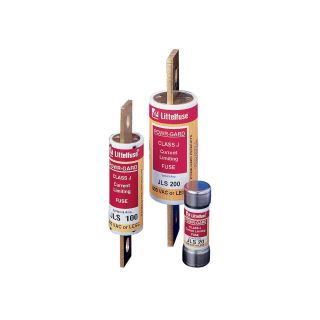

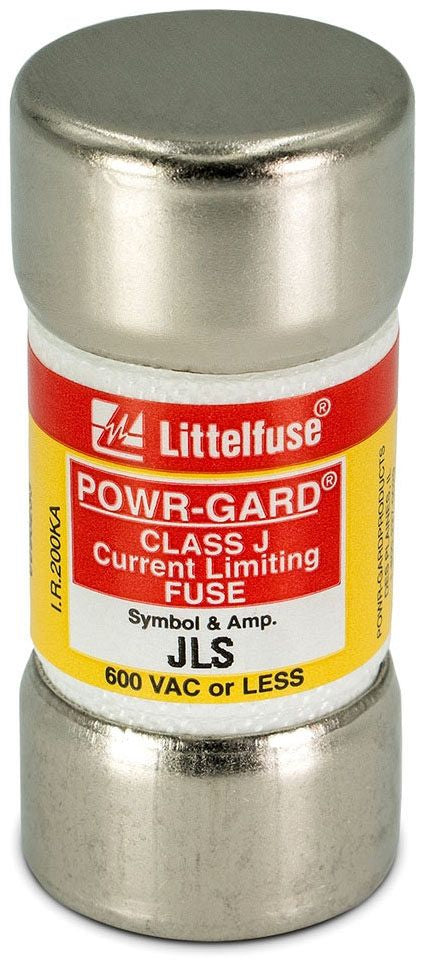

Littelfuse JLS050 High Speed Fast Acting Fuse 50 A 600 VAC 200 kA Interrupt J Class

Product Description

The Littelfuse JLS050 is a high-speed fast-acting fuse designed for effective overload and short-circuit protection in electrical applications. It features an amperage rating of fifty amps and can handle voltages up to six hundred volts. This fuse is suitable for non-inductive loads and offers space-saving advantages due to its compact design.

• Fast-acting and reliable protection for motors and other electrical equipment.
• Compact design that occupies less space compared to traditional fuses.
• Designed to interrupt high fault currents to prevent equipment damage.

Product Highlights

The JLS050 fuse is engineered to protect against short-circuit conditions while remaining compact and efficient. Ideal for various industrial applications, this fuse limits damaging short-circuit currents quickly, thus enhancing equipment life.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Part Number: JLS050

Technical Specifications

• Class: J
• Series: JLS
• Element: Single
• Voltage Rating: 600 VAC
• Amperage Rating: 50 A
• Interrupt Rating: 200 kA
• Frequency Rating: 50/60 Hz
• Body Size: 1-1/16 in Dia x 2-3/8 in L
• Body Type: Cartridge
• Material: Melamine
• Mounting Type: Bolt-On
• Terminal Type: Ferrule
