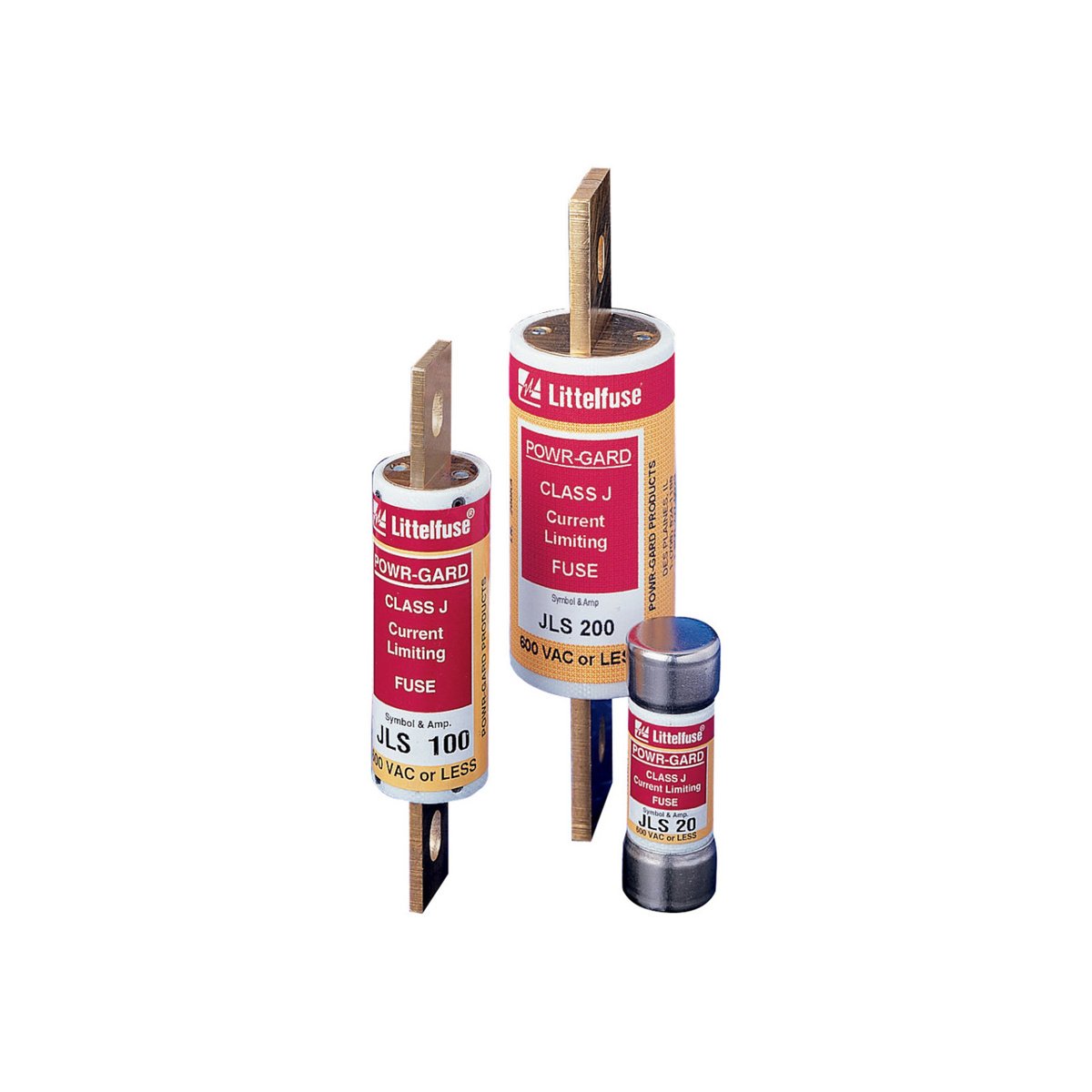

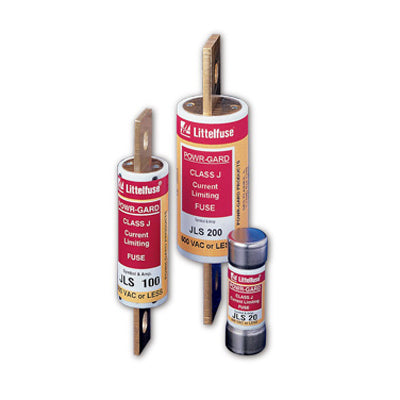

Littelfuse JLS045 Fast Acting Fuse 45 A 600 VAC UL 248-8

Product Description

The Littelfuse JLS045 is a fast-acting fuse designed for overload and short-circuit protection in vital industrial applications. This fuse provides an exceptional current-limiting capability, preventing equipment damage caused by overcurrent faults.

• UL listed and compliant with Class J standards.
• Designed for general-purpose applications, including motors and other inductive loads.
• Compact size allows for space-saving installations.

Product Highlights

This fuse can protect sensitive equipment from harmful overcurrent by limiting the peak current during fault conditions.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: JLS045

Technical Specifications

• Amperage Rating: 45 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 200 kA
• Body Size: 1-1/16 inches Diameter x 2-3/8 inches Length
• Body Type: Cartridge
• Element: Single
• Mounting Type: Bolt-On
• Material: Melamine
