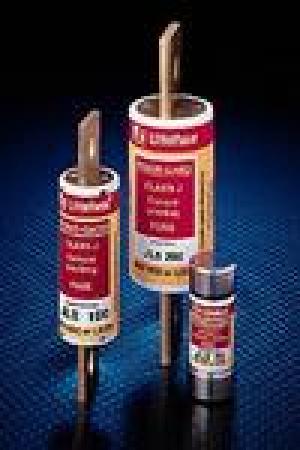

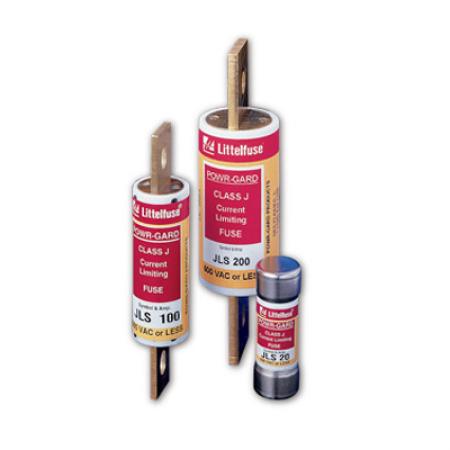

LITTELFUSE JLS006 UL CLASS J FAST-ACTING FUSE 6A 600VAC 200KA

Product Description

The LITTELFUSE JLS006 is a UL Class J Fast-Acting Fuse designed for high-speed protection. It operates at six amperes with a voltage rating of six hundred volts AC. This fuse has a high interrupt rating of two hundred kiloamperes, making it effective in stopping short circuit currents before they can cause significant damage. The body measures eleven-sixteenths inches in diameter and two and one-quarter inches in length. It is made of melamine and features a bolt-on mounting with ferrule terminals.

• Space-saving design with small size, similar to larger fuses.
• Extremely current-limiting preventing excessive damage to electrical equipment.
• Fast-acting protection for sensitive electrical devices.

Product Highlights

This fuse is suitable for general-purpose applications and is easy to install. It provides superior protection for electrical systems, enhancing the lifespan of components.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• UPC: 079458200584

Technical Specifications

• Amperage Rating: 6 A
• Voltage Rating: 600 VAC
• Class: J
• Interrupt Rating: 200 kA
• Body Size: 13/16 in Dia x 2-1/4 in L
• Material: Melamine
• Mounting Type: Bolt-On
• Series: JLS
• Frequency Rating: 50/60 Hz
• Terminal Type: Ferrule
• Type: High Speed
• Indicating/Non-Indicating: Non-Indicating
